SECTION 4.0 – ARCHITECTURAL DESIGN GUIDELINES SECTION 4.0 – ARCHITECTURAL DESIGN GUIDELINES

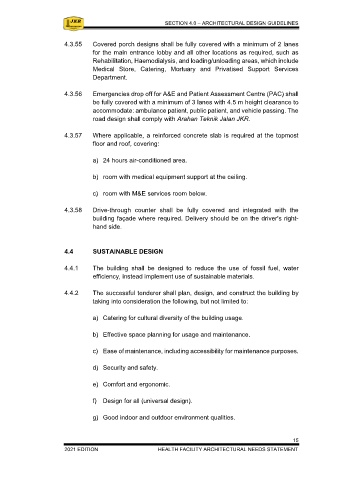

4.3.47 All medical gases and liquefied petroleum gas (LPG) tanks shall have 4.3.55 Covered porch designs shall be fully covered with a minimum of 2 lanes
a dedicated loading area conveniently accessible for deliveries and for the main entrance lobby and all other locations as required, such as
supplies. Locations and layout details shall be designed to comply with the Rehabilitation, Haemodialysis, and loading/unloading areas, which include
approving authorities. Medical Store, Catering, Mortuary and Privatised Support Services
Department.
4.3.48 All sub-main switchboards and distribution boards for M&E services shall
be concealed or hidden at appropriate locations as to not interfere with the 4.3.56 Emergencies drop off for A&E and Patient Assessment Centre (PAC) shall
architectural or interior design works. Decorative compartments or panels be fully covered with a minimum of 3 lanes with 4.5 m height clearance to
shall be provided to overcome the problem. accommodate: ambulance patient, public patient, and vehicle passing. The
road design shall comply with Arahan Teknik Jalan JKR.
4.3.49 Design of MOH dental clinics or department shall comply to Dasar Operasi
dan Perancangan Pembangunan Fasiliti Kesihatan Pergigian Kementerian 4.3.57 Where applicable, a reinforced concrete slab is required at the topmost
Kesihatan Malaysia and guidelines of Konsep Rekabentuk dan floor and roof, covering:
Pemasangan Dental Wax and Plaster Trap di Makmal Pergigian by Oral
Health Division, MOH, Malaysia. a) 24 hours air-conditioned area.

4.3.50 Special design plaster trap for the hospital shall be provided for the sink b) room with medical equipment support at the ceiling.
at the plaster room and dental laboratory to avoid blockage to the
drainage pipes described in the guidelines of Konsep Rekabentuk dan c) room with M&E services room below.
Pemasangan Dental Wax and Plaster Trap di Makmal Pergigian by Oral
Health Division, MOH, Malaysia. 4.3.58 Drive-through counter shall be fully covered and integrated with the
building façade where required. Delivery should be on the driver's right-
4.3.51 Lifts and staircases shall be strategically located within the design, hand side.
including providing dedicated routes for certain services, in line with
clinical/medical needs ( e.g., A&E, OT, and designated wards).
4.4 SUSTAINABLE DESIGN
4.3.52 All open corridors shall integrate scupper drain and adequate water
outlet/concealed downpipes and be aesthetically integrated with the 4.4.1 The building shall be designed to reduce the use of fossil fuel, water
overall façade design. efficiency, instead implement use of sustainable materials.

4.3.53 All public amenities such as public toilets, surau, and M&E services shall 4.4.2 The successful tenderer shall plan, design, and construct the building by
be efficiently designed with stackable layouts. taking into consideration the following, but not limited to:

4.3.54 Corridors shall be designed with a clear minimum width as below: a) Catering for cultural diversity of the building usage.

a) Hospital streets: 3000 mm. b) Effective space planning for usage and maintenance.

b) Inter-departmental corridor except for A&E and OT departments: c) Ease of maintenance, including accessibility for maintenance purposes.
2400 mm.
d) Security and safety.
c) A&E and OT departments: 2700 mm.
e) Comfort and ergonomic.
d) Services and materials corridor: 2100 mm.
f) Design for all (universal design).
e) Staff corridor at office area: 1200 mm.
g) Good indoor and outdoor environment qualities.

14 15
2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT 2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT
