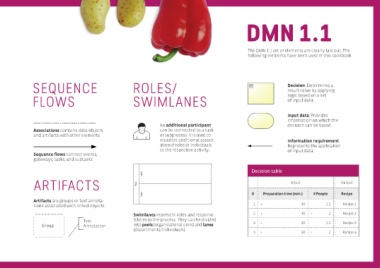

DMN 1.1

The DMN 1.1 set of elements are clearly laid out. The
following elements have been used in this cookbook.

SEQUENCE ROLES/ Decision: Determines a
result value by applying
FLOWS SWIMLANES logic based on a set
of input data.

Input data: Provides
information on which the
An additional participant decision can be based.
Associations combine data objects can be connected to a task
and artifacts with other elements. or subprocess. It is used to
visualize additional associ- Information requirement:
ation of roles or individuals Represents the application
to the respective activity. of input data.
Sequence flows connect events,
gateways, tasks, and subtasks.

Decision table
Lane
ARTIFACTS Pool Input Output

An expanded U Preparation time (min.) # People Recipe
subprocess is a Lane
decomposable Artifacts are groups or text annota- 1 ≤ 30 1 - 2 Recipe 1
activity. It con- tions associated with linked objects.
tains a valid 2 ≤ 30 > 2 Recipe 2
BPMN diagram. Swimlanes represent roles and responsi-
Text bilities in the process. They can be divided 3 > 30 1 - 2 Recipe 3
Group Annotation into pools (organizational units) and lanes
(departments/individuals).
4 > 30 > 2 Recipe 4
