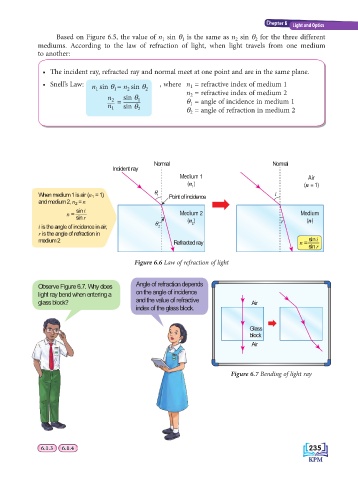

Page 241 - text book form physics kssm 2020

Chapter 6
Light and Optics
Based on Figure 6.5, the value of n sin θ is the same as n sin θ for the three different
2
1
1
2
mediums. According to the law of refraction of light, when light travels from one medium
to another:
• The incident ray, refracted ray and normal meet at one point and are in the same plane.
• Snell’s Law: n sin θ = n sin θ 2 , where n = refractive index of medium 1
1
2
1
1
2
n sin θ 1 n = refractive index of medium 2
2 = θ = angle of incidence in medium 1
1
n 1 sin θ 2 θ = angle of refraction in medium 2
2

Normal Normal
Incident ray
Medium 1 Air
(n )
1 (n = 1)
When medium 1 is air (n 1 = 1) θ 1 Point of incidence i
and medium 2, n 2 = n
sin i
n = Medium 2 Medium
sin r (n ) r (n)
i is the angle of incidence in air, θ 2 2
r is the angle of refraction in
sin i
medium 2 Refracted ray n = ––––
sin r

Figure 6.6 Law of refraction of light

Observe Figure 6.7. Why does Angle of refraction depends
light ray bend when entering a on the angle of incidence
glass block? and the value of refractive Air
index of the glass block.

Glass
block
Air

Figure 6.7 Bending of light ray
