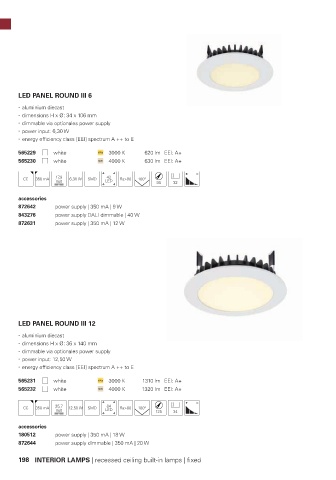

Page 199 - Deko-Light Light Impressions 2019-20
P. 199
LED PANEL ROUND III 6
aluminium diecast
dimensions H x Ø: 34 x 106 mm
dimmable via optionales power supply
power input: 6,30 W
energy efficiency class [EEI] spectrum A ++ to E
565229 white WW 3000 K 620 lm EEI: A+
565230 white NW 4000 K 630 lm EEI: A+
42
CC 350 mA 17,9 6,30 W SMD LED Ra>80 100° 90 32
accessories
872642 power supply | 350 mA | 9 W
843276 power supply DALI dimmable | 40 W
872631 power supply | 350 mA | 12 W
LED PANEL ROUND III 12
aluminium diecast
dimensions H x Ø: 36 x 140 mm
dimmable via optionales power supply
power input: 12,50 W
energy efficiency class [EEI] spectrum A ++ to E
565231 white WW 3000 K 1310 lm EEI: A+
565232 white NW 4000 K 1320 lm EEI: A+
84
CC 350 mA 35,7 12,50 W SMD LED Ra>80 100° 125 34
accessories
180512 power supply | 350 mA | 18 W
872644 power supply dimmable | 350 mA | 20 W
198 INTERIOR LAMPS | recessed ceiling built-in lamps | fixed
