Page 30 - Deko-Light Light Impressions 2019-20

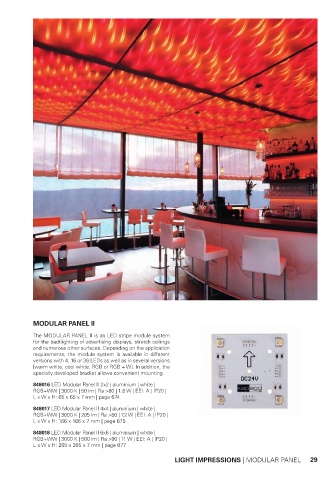

MODULAR PANEL II

The MODULAR PANEL II is an LED stripe module system
for the backlighting of advertising displays, stretch ceilings
and numerous other surfaces. Depending on the application
requirements, the module system is available in different
versions with 4, 16 or 36 LEDs as well as in several versions
[warm white, cool white, RGB or RGB + W]. In addition, the
specially developed bracket allows convenient mounting.
848016 LED Modular Panel II 2x2 | aluminium | white |
RGB+WW | 3000 K | 50 lm | Ra >80 | 1,8 W | EEI: A | IP20 |
L x W x H: 65 x 65 x 7 mm | page 674
848017 LED Modular Panel II 4x4 | aluminium | white |
RGB+WW | 3000 K | 205 lm | Ra >80 | 7,2 W | EEI: A | IP20 |
L x W x H: 166 x 166 x 7 mm | page 675
848018 LED Modular Panel II 6x6 | aluminium | white |
RGB+WW | 3000 K | 500 lm | Ra >90 | 11 W | EEI: A | IP20 |
L x W x H: 265 x 265 x 7 mm | page 677

LIGHT IMPRESSIONS | MODULAR PANEL 29
