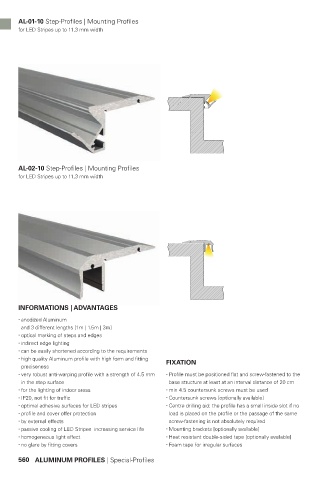

Page 561 - Deko-Light Light Impressions 2019-20
P. 561
AL-01-10 Step-Profiles | Mounting Profiles
for LED Stripes up to 11,3 mm width
AL-02-10 Step-Profiles | Mounting Profiles
for LED Stripes up to 11,3 mm width
INFORMATIONS | ADVANTAGES
anodized Aluminum
and 3 different lengths [1m | 1.5m | 3m]
optical marking of steps and edges
indirect edge lighting
can be easily shortened according to the requirements
high quality Aluminum profile with high form and fitting FIXATION
preciseness
very robust anti-warping profile with a strength of 4.5 mm Profile must be positioned flat and screw-fastened to the
in the step surface base structure at least at an interval distance of 20 cm
for the lighting of indoor areas min 4.5 countersunk screws must be used
IP20, not fit for traffic Countersunk screws [optionally available]
optimal adhesive surfaces for LED stripes Centre drilling aid: the profile has a small inside slot if no
profile and cover offer protection load is placed on the profile or the passage of the same
by external effects screw-fastening is not absolutely required
passive cooling of LED Stripes increasing service life Mounting brackets [optionally available]
homogeneous light effect Heat resistant double-sided tape [optionally available]
no glare by fitting covers Foam tape for irregular surfaces
560 ALUMINUM PROFILES | Special-Profiles
