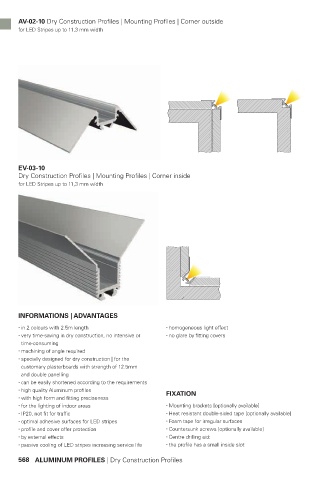

P. 569
AV-02-10 Dry Construction Profiles | Mounting Profiles | Corner outside
for LED Stripes up to 11,3 mm width
EV-03-10
Dry Construction Profiles | Mounting Profiles | Corner inside
for LED Stripes up to 11,3 mm width
INFORMATIONS | ADVANTAGES
in 2 colours with 2.5m length homogeneous light effect
very time-saving in dry construction, no intensive or no glare by fitting covers
time-consuming
machining of angle required
specially designed for dry construction | for the
customary plasterboards with strength of 12.5mm
and double panelling
can be easily shortened according to the requirements
high quality Aluminum profiles FIXATION
with high form and fitting preciseness
for the lighting of indoor areas Mounting brackets [optionally available]
IP20, not fit for traffic Heat resistant double-sided tape [optionally available]
optimal adhesive surfaces for LED stripes Foam tape for irregular surfaces
profile and cover offer protection Countersunk screws [optionally available]
by external effects Centre drilling aid:
passive cooling of LED stripes increasing service life the profile has a small inside slot
568 ALUMINUM PROFILES | Dry Construction Profiles
