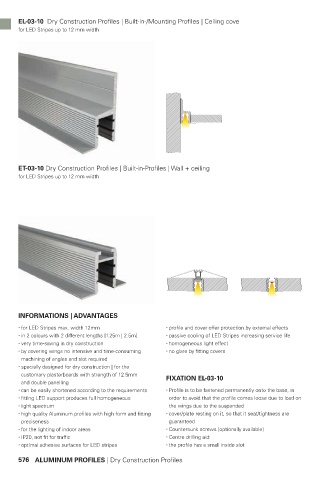

P. 577
EL-03-10 Dry Construction Profiles | Built-in-/Mounting Profiles | Ceiling cove
for LED Stripes up to 12 mm width
ET-03-10 Dry Construction Profiles | Built-in-Profiles | Wall + ceiling
for LED Stripes up to 12 mm width
INFORMATIONS | ADVANTAGES
for LED Stripes max. width 12mm profile and cover offer protection by external effects
in 2 colours with 2 different lengths [1.25m | 2.5m] passive cooling of LED Stripes increasing service life
very time-saving in dry construction homogeneous light effect
by covering wings no intensive and time-consuming no glare by fitting covers
machining of angles and slot required
specially designed for dry construction | for the
customary plasterboards with strength of 12.5mm FIXATION EL-03-10
and double panelling
can be easily shortened according to the requirements Profile is to be fastened permanently onto the base, in
fitting LED support produces full homogeneous order to avoid that the profile comes loose due to load on
light spectrum the wings due to the suspended
high quality Aluminum profiles with high form and fitting cover/plate resting on it, so that it seat/tightness are
preciseness guaranteed
for the lighting of indoor areas Countersunk screws [optionally available]
IP20, not fit for traffic Centre drilling aid:
optimal adhesive surfaces for LED stripes the profile has a small inside slot
576 ALUMINUM PROFILES | Dry Construction Profiles
