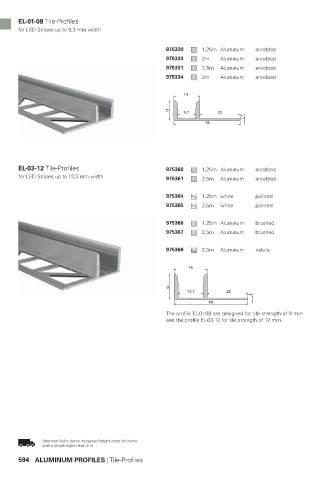

Page 595 - Deko-Light Light Impressions 2019-20
P. 595
EL-01-08 Tile-Profiles
for LED Stripes up to 9,3 mm width
975330 1,25m Aluminum anodized
975333 2m Aluminum anodized
975331 2,5m Aluminum anodized
975334 3m Aluminum anodized
14
11 9,7 22
1
36
EL-03-12 Tile-Profiles 975360 1,25m Aluminum anodized
for LED Stripes up to 13,3 mm width 975361 2,5m Aluminum anodized
975364 1,25m white painted
975365 2,5m white painted
975366 1,25m Aluminum brushed
975367 2,5m Aluminum brushed
975369 2,5m Aluminum nature
18
14
13,7 22
1
40
The profile EL-01-08 are designed for tile strength of 9 mm
and the profile EL-03-12 for tile strength of 12 mm.
Attention Bulky items increased freight costs for items
with a length higher than 2 m
594 ALUMINUM PROFILES | Tile-Profiles
