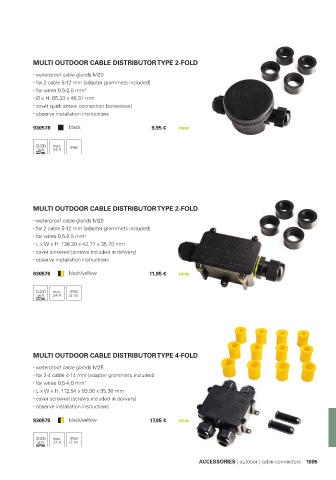

Page 1007 - Deko-light Catalogue 2022
P. 1007
MULTI OUTDOOR CABLE DISTRIBUTOR TYPE 2-FOLD
waterproof cable glands M20
for 2 cable 5-12 mm [adapter grommets included]
for wires 0,5-2,5 mm 2
Ø x H: 65,33 x 46,31 mm
cover quick screw connection [screwless]
observe installation instructions
930578 black 9,95 € new
12-230 max.
24 A IP66
MULTI OUTDOOR CABLE DISTRIBUTOR TYPE 2-FOLD
waterproof cable glands M20
for 2 cable 5-12 mm [adapter grommets included]
for wires 0,5-2,5 mm 2
L x W x H: 138,20 x 42,77 x 35,70 mm
cover screwed [screws included in delivery]
observe installation instructions
930576 black/yellow 11,95 € new
12-230 max. IP68
24 A [2 m]
MULTI OUTDOOR CABLE DISTRIBUTOR TYPE 4-FOLD
waterproof cable glands M25
for 2-4 cable 4-14 mm [adapter grommets included]
for wires 0,5-4,0 mm 2
L x W x H: 112,54 x 93,30 x 35,30 mm
cover screwed [screws included in delivery]
observe installation instructions
930575 black/yellow 17,95 € new
12-230 max. IP68
24 A [2 m]
ACCESSORIES | outdoor | cable connectors 1005
