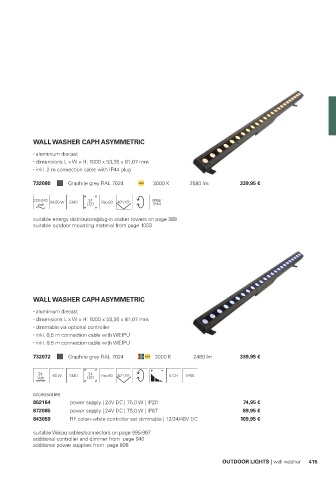

Page 417 - Deko-light Catalogue 2022
P. 417
WALL WASHER CAPH ASYMMETRIC
aluminium diecast
dimensions L x W x H: 1000 x 53,36 x 81,07 mm
inkl. 2 m connection cable with IP44 plug
732080 Graphite grey RAL 7024 WW 3000 K 2580 lm 339,95 €
220-240 34,50 W SMD 24 Ra>80 40° / 15° IP65/
LED IP44
suitable energy distributors/plug-in socket towers on page 388
suitable outdoor mounting material from page 1003
WALL WASHER CAPH ASYMMETRIC
aluminium diecast
dimensions L x W x H: 1000 x 53,36 x 81,07 mm
dimmable via optional controller
inkl. 0,5 m connection cable with WEIPU
inkl. 0,5 m connection cable with WEIPU
732072 Graphite grey RAL 7024 RGB WW 3000 K 2480 lm 339,95 €
24
24 60 W SMD LED Ra>80 40° / 15° 4 CH IP65
accessories
862164 power supply | 24V DC | 75,0 W | IP20 74,95 €
872085 power supply | 24V DC | 75,0 W | IP67 89,95 €
843059 RF color+white controller set dimmable | 12/24/48V DC 109,95 €
suitable Weipu cables/connectors on page 995-997
additional controller and dimmer from page 940
additional power supplies from page 896
OUTDOOR LIGHTS | wall washer 415
