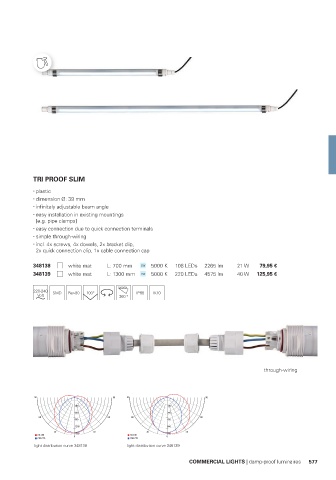

Page 579 - Deko-light Catalogue 2022
P. 579
TRI PROOF SLIM
plastic
dimension Ø: 39 mm
infinitely adjustable beam angle
easy installation in existing mountings
[e.g. pipe clamps]
easy connection due to quick connection terminals
simple through-wiring
incl. 4x screws, 4x dowels, 2x bracket clip,
2x quick connection clip, 1x cable connection cap
348138 white mat L: 700 mm CW 5000 K 108 LEDs 2265 lm 21 W 79,95 €
348139 white mat L: 1300 mm CW 5000 K 220 LEDs 4575 lm 40 W 125,95 €
220-240 SMD Ra>80 100° IP68 IK10
360 °
through-wiring
90 90 90 90
300 140
600 280
60 60 60 60
900 420
1200 560
30 30 30 30
C0-180 0 1500 C0-180 0 700
C90-270 C90-270
light distribution curve 348138 light distribution curve 348139
COMMERCIAL LIGHTS | damp-proof luminaires 577
