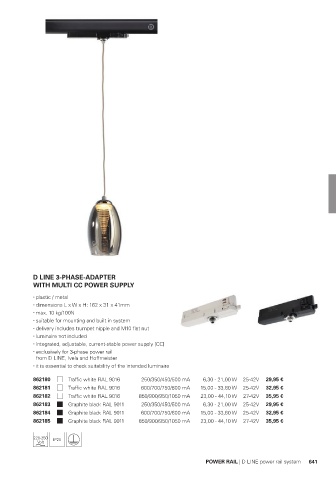

Page 643 - Deko-light Catalogue 2022
P. 643
D LINE 3-PHASE-ADAPTER
WITH MULTI CC POWER SUPPLY
plastic / metal
dimensions L x W x H: 162 x 31 x 41mm
max. 10 kg/100N
suitable for mounting and built in system
delivery includes trumpet nipple and M10 flat nut
luminaire not included
integrated, adjustable, current-stable power supply [CC]
exclusively for 3-phase power rail
from D LINE, Ivela and Hoffmeister
it is essential to check suitability of the intended luminaire
862180 Traffic white RAL 9016 250/350/450/500 mA 6,30 - 21,00 W 25-42V 29,95 €
862181 Traffic white RAL 9016 600/700/750/800 mA 15,00 - 33,60 W 25-42V 32,95 €
862182 Traffic white RAL 9016 850/900/950/1050 mA 23,00 - 44,10 W 27-42V 35,95 €
862183 Graphite black RAL 9011 250/350/450/500 mA 6,30 - 21,00 W 25-42V 29,95 €
862184 Graphite black RAL 9011 600/700/750/800 mA 15,00 - 33,60 W 25-42V 32,95 €
862185 Graphite black RAL 9011 850/900/950/1050 mA 23,00 - 44,10 W 27-42V 35,95 €
220-250 IP20
POWER RAIL | D LINE power rail system 641
