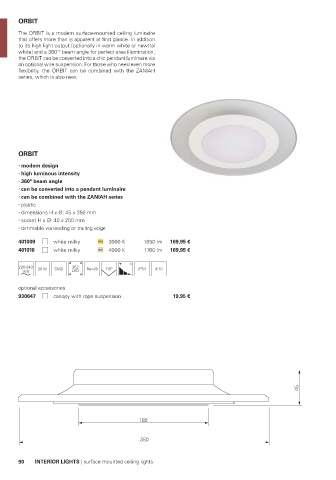

Page 92 - Deko-light Catalogue 2022
P. 92
ORBIT
The ORBIT is a modern surface-mounted ceiling luminaire
that offers more than is apparent at first glance. In addition
to its high light output [optionally in warm white or newtral
white] and a 360'° beam angle for perfect area illumination,
the ORBIT can be converted into a chic pendant luminaire via
an optional wire suspension. For those who need even more
flexibility, the ORBIT can be combined with the ZANIAH
series, which is also new.
ORBIT
modern design
high luminous intensity
360° beam angle
can be converted into a pendant luminaire
can be combined with the ZANIAH series
plastic
dimensions H x Ø: 45 x 350 mm
socket H x Ø: 40 x 200 mm
dimmable via leading or trailing edge
401009 white milky WW 3000 K 1650 lm 169,95 €
401010 white milky NW 4000 K 1760 lm 169,95 €
220-240 20 W SMD 252 Ra>80 110° IP54 IK10
LED
optional accessories
930647 canopy with rope suspension 19,95 €
45
182
350
90 INTERIOR LIGHTS | surface mounted ceiling lights
