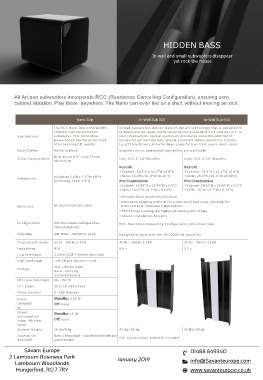

Page 55 - Savant Product Catalogue-2019

HIDDEN BASS

In-wall and small subwoofers disappear
yet rock the house

All Artison subwoofers incorporate RCC (Reactance Cancelling Configuration), ensuring zero
cabinet vibration. Play them anywhere. The Nano can even live on a shelf, without moving an inch.

Nano Sub In-Wall Sub 320 In-Wall Sub 640
The RC C Nano One is the world’s In-Wall Subwoofers deliver state-of-the-art technology that is designed to
smallest high performance be heard and not seen. Easily installed into a standard 2 x 4 stud bay pre or
K ey Features subwoofer. This diminutive post construction. Special aluminum enclosures make the addition of
powerhouse has the piston area a powerful yet invisible bass system a onetime simple operation. Custom
of an oversized 8" woofer. Lon g Throw Drivers allow for deep powerful bass from a very small space.
Color/Grilles White or Black Magnetic micro perforated steel grilles are paintable
Dual active 6.5” Long Throw
Driver Complement Four R CC 4" x 6" Woofers Eight R CC 4" x 6" Woofers
Aluminium
Retrofit Retrofit
• Cabinet: 13.4"H x 14. 2"W x3.8"D • Cabinet: 25.3"H x 14. 2"W x3.8"D
Dimensions Including Grilles: 7.5"W x 8"H • Grille: 15.0H x 16. 0"W x0.10"D • Grille: 26.9"H x 16. 0"W x0.10"D
(including Feet) x 9"D Pre-Construction Pre-Construction
• Cabinet: 13.46"H x 13.94"W x 3.5"D • Cabinet: 28.62"H x 13.94"W x 3.5"D
• Grille: 14.17"H x 3.7"W x 0.10"D • Grille: 29.3H x 3.7"W x 0.10"D
•Extruded Black Anodized Aluminium
•Adsorptive damping material for a very small enclosure, allowing for
Enclosure All aluminium extruded more versatile installation applications
•IP65 Rating is among the highest of waterproof ratings
•Includes Installation Brackets
Configuration RCC Reactance Configuration RCC - Reactance Cancelling Configuration (Vibration Free)
(Vibration Free)
Amplifier 300 Watt – 900 Watt peak Designed to work with the RCC1000 -SA Amplifier

Frequency Response 32 Hz - 160 Hz ± 3 dB 30 Hz – 160 Hz ± 3 dB 20 Hz - 160 Hz ± 3 dB
Impedance N/A 6.4 ∧ 3.2 ∧
L ow levelinput 3.5 mm (1/8") Stereo Mini-jack
High level input Left / Right Speaker Level
110 – 260 AC Volts,
Voltage
Auto- Sensing
UniversalSupply
LP F (Low Pass Filter) 60 – 160 Hz
LP F Slope 12 or 18 d B/octave
Phase Control 0 – 180 Degrees
Power Standby: 0.49 W
consumpti Off: none
on
Power Standby: <3 W
consumption
using Wireless Off: none
Input
System Weight 20 lbs/9 kg 22 lbs/ 10 kg 45 lbs/ 20 kg
Accessories Nano 1 Transmitter - includes transmitter and Pre- Construction brackets included
Available power adapter
