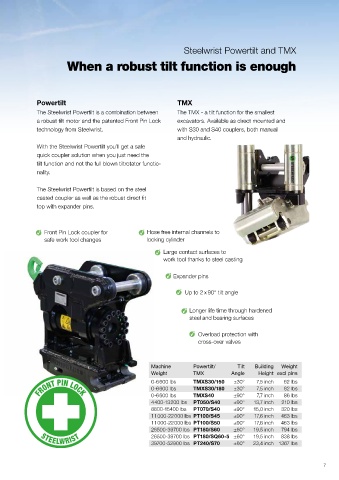

Steelwrist Powertilt and TMX

When a robust tilt function is enough

Powertilt TMX
The Steelwrist Powertilt is a combination between The TMX - a tilt function for the smallest
a robust tilt motor and the patented Front Pin Lock excavators. Available as direct mounted and
technology from Steelwrist. with S30 and S40 couplers, both manual
and hydraulic.
With the Steelwrist Powertilt you’ll get a safe
quick coupler solution when you just need the
tilt function and not the full blown tiltrotator functio-
nality.

The Steelwrist Powertilt is based on the steel
casted coupler as well as the robust direct fit
top with expander pins.

Front Pin Lock coupler for Hose free internal channels to
safe work tool changes locking cylinder
Large contact surfaces to
work tool thanks to steel casting

Expander pins

Up to 2 x90° tilt angle

Longer life time through hardened
steel and bearing surfaces

Overload protection with
cross-over valves

Machine Powertilt/ Tilt Building Weight
Weight TMX Angle Height excl pins
0-6600 lbs TMXS30/150 ±30° 7,5 inch 62 lbs
0-6600 lbs TMXS30/180 ±30° 7,5 inch 62 lbs
FRONT PIN LOCK 0-6600 lbs TMXS40 ±90° 7,7 inch 86 lbs
4400-13200 lbs PT050/S40 ±90° 13,7 inch 210 lbs
8800-15400 lbs PT070/S40 ±90° 15,0 inch 320 lbs
11000-22000 lbs PT100/S45 ±90° 17,6 inch 463 lbs
11000-22000 lbs PT100/S50 ±90° 17,6 inch 463 lbs
26500-39700 lbs PT180/S60 ±60° 19,5 inch 794 lbs
STEELWRIST 26500-39700 lbs PT180/SQ60-5 ±60° 19,5 inch 838 lbs
39700-52900 lbs PT240/S70 ±60° 23,4 inch 1367 lbs
