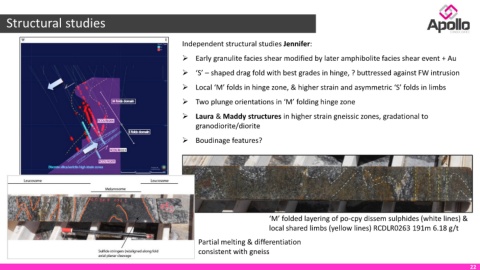

Structural studies

Independent structural studies Jennifer:

➢ Early granulite facies shear modified by later amphibolite facies shear event + Au

➢ ‘S’ – shaped drag fold with best grades in hinge, ? buttressed against FW intrusion

➢ Local ‘M’ folds in hinge zone, & higher strain and asymmetric ‘S’ folds in limbs

➢ Two plunge orientations in ‘M’ folding hinge zone

➢ Laura & Maddy structures in higher strain gneissic zones, gradational to

granodiorite/diorite

➢ Boudinage features?

‘M’ folded layering of po-cpy dissem sulphides (white lines) &
local shared limbs (yellow lines) RCDLR0263 191m 6.18 g/t

Partial melting & differentiation
consistent with gneiss

22
