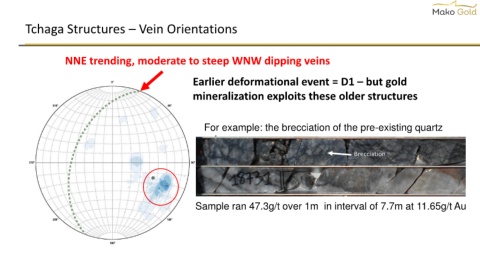

Tchaga Structures – Vein Orientations






                           NNE trending, moderate to steep WNW dipping veins



                                                                              Earlier deformational event = D1 – but gold


                                                                              mineralization exploits these older structures





                                                                                   For example: the brecciation of the pre-existing quartz

                                                                                   vein















                                                                               Sample ran 47.3g/t over 1m  in interval of 7.7m at 11.65g/t Au
