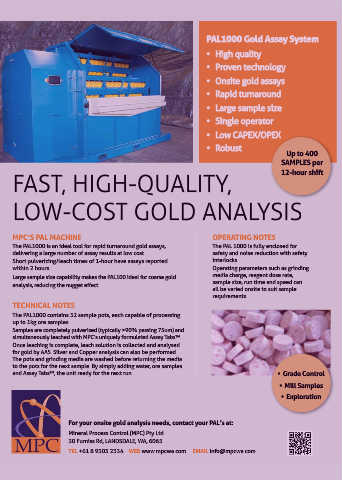

PAL1000 Gold Assay System

• High quality

• Proven technology

• Onsite gold assays

• Rapid turnaround
• Large sample size

• Single operator

• Low CAPEX/OPEX

• Robust
Up to 400
SAMPLES per
FAST, HIGH-QUALITY, 12-hour shift

LOW-COST GOLD ANALYSIS

MPC’S PAL MACHINE OPERATING NOTES
The PAL1000 is an ideal tool for rapid turnaround gold assays, The PAL 1000 is fully enclosed for
delivering a large number of assay results at low cost. safety and noise reduction with safety
Short pulverizing/leach times of 1-hour have assays reported interlocks.
within 2 hours. Operating parameters such as grinding
Large sample size capability makes the PAL100 ideal for coarse gold media charge, reagent dose rate,
analysis, reducing the nugget effect. sample size, run time and speed can
all be varied onsite to suit sample
requirements.
TECHNICAL NOTES
The PAL1000 contains 52 sample pots, each capable of processing
up to 1kg ore samples.
Samples are completely pulverised (typically >90% passing 75um) and
simultaneously leached with MPC’s uniquely formulated Assay Tabs™.
Once leaching is complete, leach solution is collected and analysed
for gold by AAS. Silver and Copper analysis can also be performed.
The pots and grinding media are washed before returning the media
to the pots for the next sample. By simply adding water, ore samples
and Assay Tabs™, the unit ready for the next run. • Grade Control
• Mill Samples

• Exploration

For your onsite gold analysis needs, contact your PAL’s at:
Mineral Process Control (MPC) Pty Ltd
30 Furniss Rd, LANDSDALE, WA, 6065
TEL +61 8 9303 2334 WEB www.mpcwa.com EMAIL info@mpcwa.com
