Innovation for a Better Life

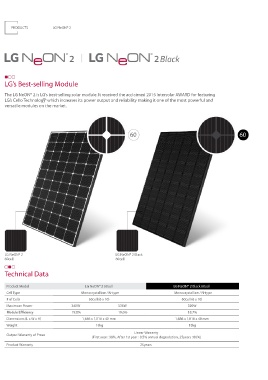

PRODUCTS LG NeON® 2
LG SOLAR

Features

Technical Feature Increased Light Absorption Reduced Electricity Loss
LG’s Best-selling Module 1 2 3 4 5 6 7 8 9 10 11 12 11 12
1 2 3 4 5 6 7 8 9 10
The LG NeON® 2 is LG’s best-selling solar module. It received the acclaimed 2015 Intersolar AWARD for featuring Cello Technology™ Glass
TM
LG’s Cello Technology which increases its power output and reliability making it one of the most powerful and
versatile modules on the market. Wire
Solar Cell
1 2 3 4 5 6 7 8 9 10 11 12

Conventional Glass
60 60 Ribbon Product

12 Wires Interconnectors
Solar Cell

High Power Module

The LG NeON® 2 produces more 13.3 kWh/Day
energy than conventional modules 11.6 kWh/Day
allowing energy requirements to be 4.02 kWp 11.0 kWh/Day
(335W x 12)
met using less space. 3.66 kWp
(305W x 12) 3.48 kWp
(290W x 12)
Daily Power Generation Power Output Daily Power Generation Power Output Daily Power Generation Power Output
Wire Wire

4 3 4 3 4 3

P-type Mono P-type Multi
LG NeON® 2 LG NeON® 2 Black * PV Syst simulation result
60cell 60cell * Region : Bayern München, Germany Power Output Comparison of 12-module arrays

Technical Data
Aesthetic Black module
Product Model LG NeON® 2 60cell LG NeON® 2 Black 60cell Wire
Cell Type Monocrystalline / N-type Monocrystalline / N-type The LG NeON® 2 black is equipped
# of Cells 60cell (6 x 10) 60cell (6 x 10) with a sophisticated matte black
Maximum Power 340W 335W 320W frame and a complementary black
back sheet, and black cells with
19.8% 19.6% 18.7% thin electrodes. This module is
Dimensions (L x W x H) 1,686 x 1,016 x 40 mm 1,686 x 1,016 x 40 mm perfectly suited to any rooftop.
Weight 18kg 18kg

Linear Warranty Black Cell with
Output Warranty of Pmax Matte Black Back sheet
(First year : 98%, After 1st year : 0.5% annual degradation, 25years : 86%) Black Frame Cello Technology
Product Warranty 25years
