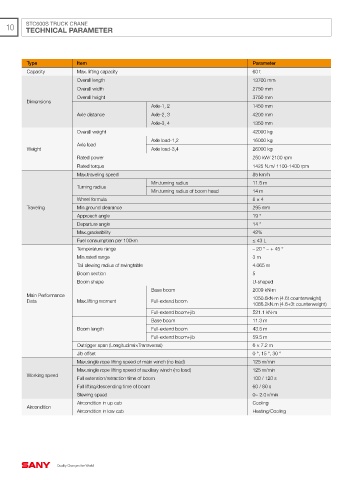

TEChNICAl PARAMETER

STC600S Working Ranges of Boom

Type Item Parameter
Capacity Max. lifting capacity 60 t
Overall length 13700 mm
Overall width 2750 mm
Overall height 3750 mm
Dimensions
Axle-1, 2 1450 mm
Axle distance Axle-2, 3 4200 mm
Axle-3, 4 1350 mm 50(m)
Overall weight 42000 kg 43.50m
80°
Axle load-1,2 16000 kg 9.5
Axle load 9.5 9.3
Weight Axle load-3,4 26000 kg 9.0 8.5 70°
7.5 45
Rated power 250 kW/ 2100 rpm 6.7
4.8
Rated torque 1425 N.m/ 1100-1400 rpm
37.46m 60°
Max.traveling speed 85 km/h 3.9
14.0 14.0 3.1
Min.turning radius 11.5 m 13.0 12.5 11.6 2.45 40
Turning radius 10.7
Min.turning radius of boom head 14 m 10.1
7.6
Wheel formula 8 × 4 6.0 1.8 50°
Traveling Min.ground clearance 295 mm 31.43m 4.6 1.4
Approach angle 19 ° Lifting height (m) 17.5 17.5 17.5 16.0 3.65 1.05 35
Departure angle 14 ° 14.5 13.5 11.5 10.0 2.85
Max.gradeability 42% 7.4 2.15 0.75 40°
Fuel consumption per 100km ≤ 43 L 25.39m
5.6 1.6 30
Temperature range – 20 ° ~ + 45 ° 24.6 24.2
22.5 4.2
Min.rated range 3 m 20.0 18.0 1.15
16.5 3.2
Tail slewing radius of swingtable 4.065 m 13.5 11.0
9.4
Boom section 5 19.35m 2.4 0.8 25
Boom shape U-shaped 6.7
35.0 35.0 4.9 30°
Base boom 2009 kN·m 30.0 26.5 1.8
Main Performance 15.33m 24.0 21.0
Data Max.lifting moment Full-extend boom 1050.6kN·m (4.6t counterweight)
1066.2kN.m (4.6+3t counterweight) 15.5 12.6 3.55 20
45.0 10.2 1.25
Full-extend boom+jib 521.1 kN·m 45.0
40.0 32.5 8.3 2.55
Base boom 11.3 m 26.5
11.30m
20.0
Boom length Full-extend boom 43.5 m 15.6 5.6
60.0 15
Full-extend boom+jib 59.5 m 48.0 12.6 20°
41.0 10.3 1.8
Outrigger span (Longitudinal×Transversal) 6 × 7.2 m 32.5
Jib offset 0 °, 15 °, 30 ° 26.5 8.8 3.9
Max.single rope lifting speed of main winch (no load) 125 m/min 20.8 10
Max.single rope lifting speed of auxiliary winch (no load) 125 m/min 16.2
Working speed
Full extension/retraction time of boom 100 / 120 s
Full lifting/descending time of boom 60 / 80 s
5
Slewing speed 0~ 2.0 r/min
Aircondition in up cab Cooling
Aircondition
Aircondition in low cab Heating/Cooling
