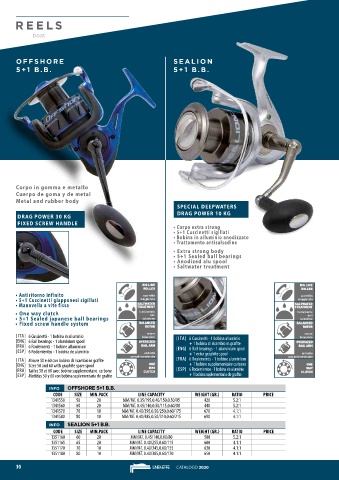

Page 30 - Lineaeffe Catalog 2020

REEL S

boat

OFFSHORE SEALION
5+1 B.B. 5+1 B.B.

Corpo in gomma e metallo
Cuerpo de goma y de metal
Metal and rubber body
SPECIAL DEEPWATERS

DRAG POWER 30 KG DRAG POWER 10 KG
FIXED SCREW HANDLE
• Corpo extra strong
• 5+1 Cuscinetti sigillati
• Bobina in alluminio anodizzato
• Trattamento antisalsedine
• Extra strong body
• 5+1 Sealed ball bearings
• Anodized alu spool
• Saltwater treatment

BIG LINE BIG LINE
ROLLER ROLLER
• Antiritorno infinito scorrifilo scorrifilo
• 5+1 Cuscinetti giapponesi sigillati maggiorato maggiorato
• Manovella a vite fissa TREATMENT SALTWATER
SALTWATER
TREATMENT
• One way clutch trattamento trattamento
anti
anti
• 5+1 Sealed japanese ball bearings salsedine salsedine
• Fixed screw handle system BALANCED BALANCED
ROTOR ROTOR
rotore rotore
[ITA] 6 Cuscinetti - 1 bobina in alluminio bilanciato [ITA] 6 Cuscinetti - 1 bobina alluminio bilanciato
[ENG] 6 Ball bearings - 1 aluminium spool OVERSIZED + 1 bobina di ricambio in grafite OVERSIZED
[FRA] 6 Roulements - 1 bobine alluminium BAIL ARM [ENG] 6 Ball bearings - 1 aluminium spool BAIL ARM
[ESP] 6 Rodamientos - 1 bobina de aluminio archetto + 1 extra graphite spool archetto
sovradimensionato sovradimensionato
[ITA] Misure 50 e 60 con bobina di ricambio in grafite [FRA] 6 Roulements - 1 bobine aluminium
ONE
[ENG] Sizes 50 and 60 with graphite spare spool WAY + 1 bobine supplementaire carbone ONE
WAY
[FRA] Tailles 50 et 60 avec bobine supplementaire carbone CLUTCH [ESP] 6 Rodamientos - 1 bobina de aluminio CLUTCH
[ESP] Medidas 50 y 60 con bobina suplementaria de grafito + 1 bobina suplementaria de grafito
INFO OFFSHORE 5+1 B.B.
CODE SIZE MIN.PACK LINE CAPACITY WEIGHT (GR.) RATIO PRICE
1341550 50 20 MM/MT. 0.35/195,0.40/150,0.50/95 420 5.2:1 € 55,90
1341560 60 20 MM/MT. 0.45/140,0.50/115,0.60/80 440 5.2:1 € 57,90
1341570 70 10 MM/MT. 0.40/395,0.50/250,0.60/175 670 4.1:1 € 65,90
1341580 80 10 MM/MT. 0.40/485,0.50/310,0.60/215 690 4.1:1 € 66,90
INFO SEALION 5+1 B.B.
CODE SIZE MIN.PACK LINE CAPACITY WEIGHT (GR.) RATIO PRICE
1351160 60 20 MM/MT. 0.45/140,0.60/80 500 5.2:1 € 39,80
1351165 65 20 MM/MT. 0.40/255,0.60/115 600 4.1:1 € 45,90
1351170 70 10 MM/MT. 0.40/345,0.60/155 630 4.1:1 € 47,90
1351180 80 10 MM/MT. 0.40/385,0.60/170 650 4.1:1 € 49,90

30 CATALOGO 2020
