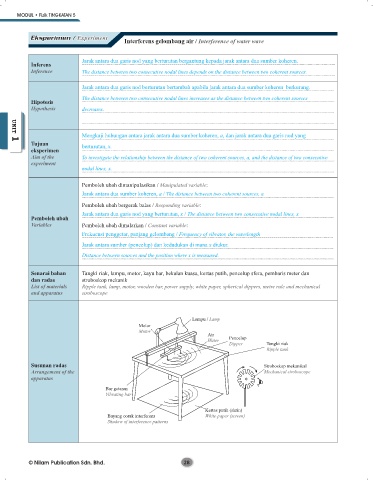

MODUL • Fizik TINGKATAN 5

Eksperimen / Experiment
Interferens gelombang air / Interference of water wave

Jarak antara dua garis nod yang berturutan bergantung kepada jarak antara dua sumber koheren.
Inferens
Inference The distance between two consecutive nodal lines depends on the distance between two coherent sources.

Jarak antara dua garis nod berturutan bertambah apabila jarak antara dua sumber koheren berkurang.
The distance between two consecutive nodal lines increases as the distance between two coherent sources
Hipotesis
Hypothesis decreases.

Mengkaji hubungan antara jarak antara dua sumber koheren, a, dan jarak antara dua garis nod yang
Tujuan berturutan, x.
UNIT 1
eksperimen
Aim of the To investigate the relationship between the distance of two coherent sources, a, and the distance of two consecutive
experiment
nodal lines, x.

Pemboleh ubah dimanipulasikan / Manipulated variable:
Jarak antara dua sumber koheren, a / The distance between two coherent sources, a
Pemboleh ubah bergerak balas / Responding variable:
Jarak antara dua garis nod yang berturutan, x / The distance between two consecutive nodal lines, x
Pemboleh ubah
Variables Pemboleh ubah dimalarkan / Constant variable:
Frekuensi penggetar, panjang gelombang / Frequency of vibrator, the wavelength
Jarak antara sumber (pencelup) dan kedudukan di mana x diukur.

Distance between sources and the position where x is measured.

Senarai bahan Tangki riak, lampu, motor, kayu bar, bekalan kuasa, kertas putih, pencelup sfera, pembaris meter dan
dan radas stroboskop mekanik
List of materials Ripple tank, lamp, motor, wooden bar, power supply, white paper, spherical dippers, metre rule and mechanical
and apparatus stroboscope

Lampu / Lamp
Motor
Motor
Air
Water Pencelup
Dipper Tangki riak
Ripple tank

Susunan radas Stroboskop mekanikal
Arrangement of the Mechanical stroboscope
apparatus
Bar getaran
Vibrating bar

Kertas putih (skrin)
Bayang corak interferens White paper (screen)
Shadow of interference patterns
