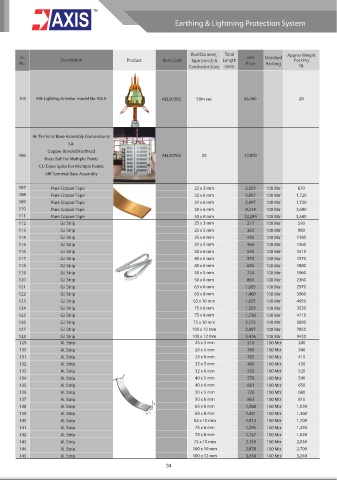

Page 38 - New Price List

Earthing & Lightning Protection System

Rod Dia (mm) , Total Approx Weight
Sr. Unit Standard
No. Description Product Item Code Tape (mm2) & Length Price Packing Packing
kg.
Conductor Sizes (mm)

105 ESE Lighting Arrestor model No ASLA AEL90302 50m sec 56,400 20

Air Terminal Base Assembly Conventional
LA:
Copper Bonded Earthrod
106 AEL90765 25 12,000
Brass Ball For Multiple Points
CU Taper Spike For Multiple Points
AIR Terminal Base Assembly

107 Pure Copper Tape 25 x 3 mm 2,303 100 Mtr 670
108 Pure Copper Tape 32 x 6 mm 5,897 100 Mtr 1,720
109 Pure Copper Tape 32 x 6 mm 5,897 100 Mtr 1,720
110 Pure Copper Tape 50 x 6 mm 9,214 100 Mtr 2,690
111 Pure Copper Tape 50 x 8 mm 12,284 100 Mtr 3,580
112 G.I Strip 25 x 3 mm 217 100 Mtr 590
113 G.I Strip 25 x 5 mm 362 100 Mtr 980
114 G.I Strip 25 x 6 mm 435 100 Mtr 1180
115 G.I Strip 32 x 5 mm 463 100 Mtr 1260
116 G.I Strip 32 x 6 mm 556 100 Mtr 1510
117 G.I Strip 40 x 5 mm 579 100 Mtr 1570
118 G.I Strip 40 x 6 mm 695 100 Mtr 1880
119 G.I Strip 50 x 5 mm 724 100 Mtr 1960
120 G.I Strip 50 x 6 mm 869 100 Mtr 2360
121 G.I Strip 63 x 6 mm 1,095 100 Mtr 2970
122 G.I Strip 63 x 8 mm 1,460 100 Mtr 3960
123 G.I Strip 63 x 10 mm 1,825 100 Mtr 4950
124 G.I Strip 75 x 6 mm 1,303 100 Mtr 3530
125 G.I Strip 75 x 8 mm 1,738 100 Mtr 4710
126 G.I Strip 75 x 10 mm 2,173 100 Mtr 5890
127 G.I Strip 100 x 10 mm 2,897 100 Mtr 7850
128 G.I Strip 100 x 12 mm 3,476 100 Mtr 9420
129 Al. Strip 25 x 3 mm 216 100 Mtr 200
130 Al. Strip 25 x 5 mm 360 100 Mtr 340
131 Al. Strip 25 x 6 mm 432 100 Mtr 410
132 Al. Strip 32 x 5 mm 460 100 Mtr 430
133 Al. Strip 32 x 6 mm 553 100 Mtr 520
134 Al. Strip 40 x 5 mm 576 100 Mtr 540
135 Al. Strip 40 x 6 mm 691 100 Mtr 650
136 Al. Strip 50 x 5 mm 720 100 Mtr 680
137 Al. Strip 50 x 6 mm 863 100 Mtr 810
B
138 Al. Strip 63 x 6 mm 1,088 100 Mtr 1,020
139 Al. Strip A 63 x 8 mm 1,451 100 Mtr 1,360
140 Al. Strip 63 x 10 mm 1,813 100 Mtr 1,700
141 Al. Strip 75 x 6 mm 1,295 100 Mtr 1,220
142 Al. Strip 75 x 8 mm 1,727 100 Mtr 1,620
143 Al. Strip 75 x 10 mm 2,159 100 Mtr 2,030
144 Al. Strip 100 x 10 mm 2,878 100 Mtr 2,700
145 Al. Strip 100 x 12 mm 3,454 100 Mtr 3,240
34
