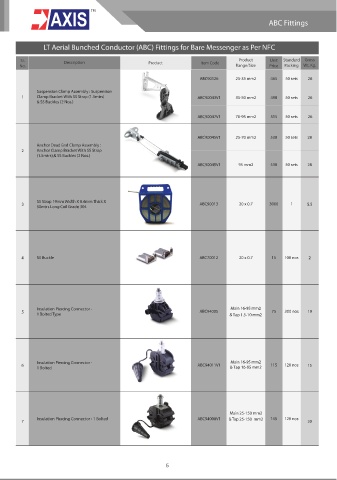

Page 9 - New Price List

ABC Fittings

LT Aerial Bunched Conductor (ABC) Fittings for Bare Messenger as Per NFC

Sr. Description Product Unit Standard Gross
No. Product Item Code Range/Size Price Packing Wt. Kg.

ABC90126 25-35 mm2 465 50 sets 26

Suspension Clamp Assembly : Suspension
1 Clamp Bracket With SS Strap (1.5mtrs) ABC90043V1 35-50 mm2 498 50 sets 26
& SS Buckles (2 Nos.)

ABC90047V1 70-95 mm2 515 50 sets 26

ABC90045V1 25-70 mm2 530 50 sets 28
Anchor Dead End Clamp Assembly :
2 Anchor Clamp Bracket With SS Strap
(1.5mtrs),& SS Buckles (2 Nos.)
ABC90045V1 95 mm2 530 50 sets 28

SS Strap 19mm Width X 0.4mm Thick X
3 ABC90013 20 x 0.7 3000 1 5.5
50mtrs Long Coil Grade 304

4 SS Buckle ABC70012 20 x 0.7 15 100 nos 2

Insulation Piercing Connector - Main 16-95 mm2
5 ABC94005 75 300 nos 19
1 Bolted Type & Tap 1.5-10 mm2

Insulation Piercing Connector - Main 16-95 mm2
6 ABC94011V1 115 120 nos 15
1 Bolted & Tap 16-95 mm2

Main 25-150 mm2
Insulation Piercing Connector - 1 Bolted ABC94008V1 & Tap 25-150 mm2 145 120 nos
7 20

5
