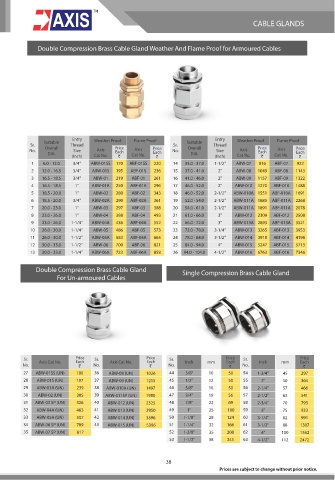

Page 42 - Reduction 6.5 x 9.286 New Price List

CABLE GLANDS

Double Compression Brass Cable Gland Weather And Flame Proof for Armoured Cables

Entry Entry
Suitable Weather Proof Flame Proof Suitable Weather Proof Flame Proof
Sr. Thread Sr. Thread
No. Overall Size Axis Price Axis Price No. Overall Size Axis Price Axis Price
Each
Each
Each
Each
DIA. Cat No. Cat No. DIA. Cat No. Cat No.
(Inch) (Inch)
1 6.0 - 12.0 3/4" ABW-01SS 170 ABF-01SS 220 14 33.0 - 37.0 1-1/2" ABW-07 816 ABF-07 922
2 12.0 - 16.5 3/4" ABW-01S 195 ABF-01S 236 15 37.0 - 41.0 2" ABW-08 1049 ABF-08 1143
3 16.5 - 18.5 3/4" ABW-01 219 ABF-01 261 16 41.0 - 46.0 2" ABW-09 1157 ABF-09 1322
4 16.5 - 18.5 1" ABW-01A 250 ABF-01A 296 17 46.0 - 52.0 2" ABW-010 1270 ABF-010 1488
5 18.5 - 20.0 1" ABW-02 280 ABF-02 343 18 46.0 - 52.0 2-1/2" ABW-010A 1551 ABF-010A 1691
6 18.5 - 20.0 3/4" ABW-02A 290 ABF-02A 361 19 52.0 - 54.0 2-1/2" ABW-011A 1885 ABF-011A 2268
7 20.0 - 23.0 1" ABW-03 297 ABF-03 388 20 54.0 - 61.0 2-1/2" ABW-011A 1891 ABF-011A 2078
8 23.0 - 26.0 1" ABW-04 388 ABF-04 493 21 61.0 - 66.0 3" ABW-012 2309 ABF-012 2508
9 23.0 - 26.0 1-1/4" ABW-04A 436 ABF-04A 552 22 66.0 - 72.0 3" ABW-013A 2893 ABF-013A 3521
10 26.0 - 30.0 1-1/4" ABW-05 486 ABF-05 573 23 72.0 - 78.0 3-1/4" ABW-013 3265 ABF-013 3953
11 26.0 - 30.0 1-1/2" ABW-05A 583 ABF-05A 665 24 78.0 - 84.0 3-1/2" ABW-014 3918 ABF-014 4198
12 30.0 - 33.0 1-1/2" ABW-06 700 ABF-06 821 25 84.0 - 94.0 4" ABW-015 5247 ABF-015 5713
13 30.0 - 33.0 1-1/4" ABW-06A 723 ABF-06A 858 26 94.0 - 104.0 4-1/2" ABW-016 6763 ABF-016 7346
Double Compression Brass Cable Gland
Single Compression Brass Cable Gland
For Un-armoured Cables

Sr. Price Sr. Price Sr. Price Sr. Price
No. Axis Cat No. Each No. Axis Cat No. Each No. Inch mm Each No. Inch mm Each
27 ABW-01SS (UN) 180 36 ABW-08 (UN) 1026 44 3/8" 10 50 54 1-3/4" 45 297
28 ABW-01S (UN) 197 37 ABW-09 (UN) 1215 45 1/2" 12 50 55 2" 50 364
29 ABW-01A (UN) 239 38 ABW-010A (UN) 1497 46 5/8" 16 50 56 2-1/4" 57 466
30 ABW-02 (UN) 305 39 ABW-011SP (UN) 1980 47 3/4" 19 56 57 2-1/2" 63 541
31 ABW-03 SP (UN) 326 40 ABW-012 (UN) 2325 48 7/8" 22 69 58 2-3/4" 70 793
32 ABW-04A (UN) 463 41 ABW-013 (UN) 2950 49 1" 25 100 59 3" 75 933
33 ABW-05A (UN) 507 42 ABW-014 (UN) 3596 50 1-1/8" 28 124 60 3-1/4" 82 991
34 ABW-06 SP (UN) 709 43 ABW-015 (UN) 5396 51 1-1/4" 32 166 61 3-1/2" 88 1307
35 ABW-07 SP (UN) 817 52 1-3/8" 35 208 62 4" 100 1552
53 1-1/2" 38 245 63 4-1/2" 112 2472

38
Prices are subject to change without prior notice.
