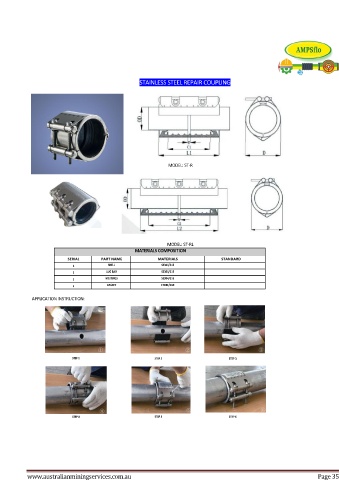

STAINLESS STEEL REPAIR COUPLING
MODEL: ST-R
MODEL: ST-RL
MATERIALS COMPOSITION
SERIAL PART NAME MATERIALS STANDARD
1 SHELL SS304/316
2 LUG BAR SS304/316
3 BOLTINGS SS304/316
4 GASKET EPDM/NBR
APPLICATION INSTRUCTION:
STEP 1 STEP 2 STEP 3
STEP 4 STEP 5 STEP 6
