Page 12 - Heavy Shutter SMC

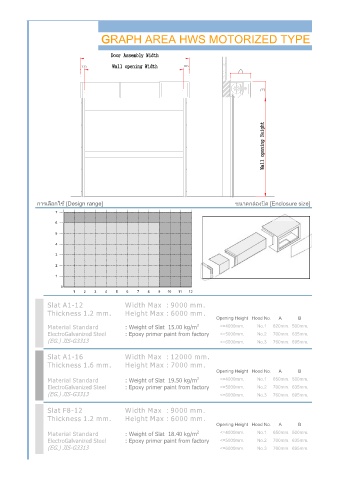

GRAPH AREA HWS MOTORIZED TYPE

Door Assembly Width
Wall opening Width

Wall opening Height

การเลือกใช [Design range] ขนาดกลองปด [Enclosure size]
7
6

5
4
3

2
1
0
1 2 3 4 5 6 7 8 9 10 11 12

Slat A1-12 Width Max : 9000 mm.
Thickness 1.2 mm. Height Max : 6000 mm.
Opening Height Hood No. A B
2
Material Standard : Weight of Slat 15.00 kg/m <=4000mm. No.1 620mm. 500mm.
ElectroGalvanized Steel : Epoxy primer paint from factory <=5000mm. No.2 700mm. 635mm.
(EG.) JIS-G3313 <=6000mm. No.3 760mm. 695mm.

Slat A1-16 Width Max : 12000 mm.
Height Max : 7000 mm.
Thickness 1.6 mm.
Opening Height Hood No. A B
2
Material Standard : Weight of Slat 19.50 kg/m <=4000mm. No.1 650mm. 500mm.
ElectroGalvanized Steel : Epoxy primer paint from factory <=5000mm. No.2 700mm. 635mm.
(EG.) JIS-G3313 <=6000mm. No.3 760mm. 695mm.

Slat F8-12 Width Max : 9000 mm.
Thickness 1.2 mm. Height Max : 6000 mm.
Opening Height Hood No. A B
2
Material Standard : Weight of Slat 18.40 kg/m <=4000mm. No.1 650mm. 500mm.
ElectroGalvanized Steel : Epoxy primer paint from factory <=5000mm. No.2 700mm. 635mm.
(EG.) JIS-G3313 <=6000mm. No.3 760mm. 695mm.
