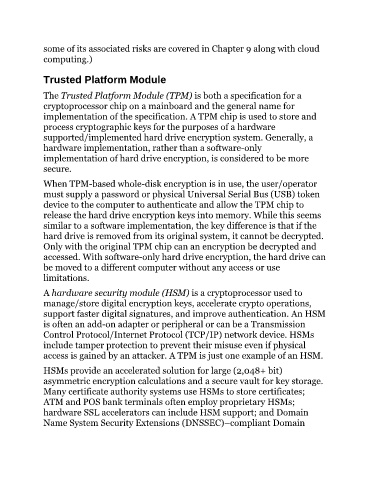

Page 534 - (ISC)² CISSP Certified Information Systems Security Professional Official Study Guide

some of its associated risks are covered in Chapter 9 along with cloud
computing.)

Trusted Platform Module

The Trusted Platform Module (TPM) is both a specification for a
cryptoprocessor chip on a mainboard and the general name for
implementation of the specification. A TPM chip is used to store and
process cryptographic keys for the purposes of a hardware

supported/implemented hard drive encryption system. Generally, a
hardware implementation, rather than a software-only
implementation of hard drive encryption, is considered to be more
secure.

When TPM-based whole-disk encryption is in use, the user/operator
must supply a password or physical Universal Serial Bus (USB) token
device to the computer to authenticate and allow the TPM chip to

release the hard drive encryption keys into memory. While this seems
similar to a software implementation, the key difference is that if the
hard drive is removed from its original system, it cannot be decrypted.
Only with the original TPM chip can an encryption be decrypted and
accessed. With software-only hard drive encryption, the hard drive can
be moved to a different computer without any access or use
limitations.

A hardware security module (HSM) is a cryptoprocessor used to
manage/store digital encryption keys, accelerate crypto operations,
support faster digital signatures, and improve authentication. An HSM
is often an add-on adapter or peripheral or can be a Transmission
Control Protocol/Internet Protocol (TCP/IP) network device. HSMs
include tamper protection to prevent their misuse even if physical
access is gained by an attacker. A TPM is just one example of an HSM.

HSMs provide an accelerated solution for large (2,048+ bit)
asymmetric encryption calculations and a secure vault for key storage.
Many certificate authority systems use HSMs to store certificates;
ATM and POS bank terminals often employ proprietary HSMs;
hardware SSL accelerators can include HSM support; and Domain
Name System Security Extensions (DNSSEC)–compliant Domain
