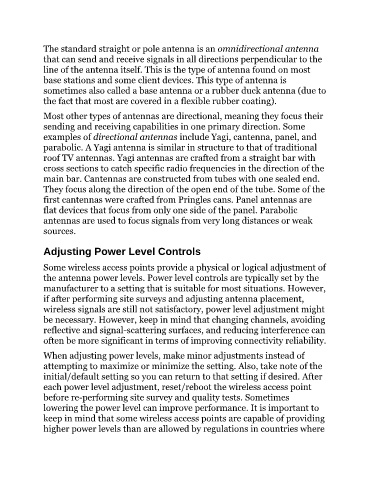

The standard straight or pole antenna is an omnidirectional antenna
               that can send and receive signals in all directions perpendicular to the

               line of the antenna itself. This is the type of antenna found on most
               base stations and some client devices. This type of antenna is
               sometimes also called a base antenna or a rubber duck antenna (due to
               the fact that most are covered in a flexible rubber coating).

               Most other types of antennas are directional, meaning they focus their
               sending and receiving capabilities in one primary direction. Some

               examples of directional antennas include Yagi, cantenna, panel, and
               parabolic. A Yagi antenna is similar in structure to that of traditional
               roof TV antennas. Yagi antennas are crafted from a straight bar with
               cross sections to catch specific radio frequencies in the direction of the
               main bar. Cantennas are constructed from tubes with one sealed end.
               They focus along the direction of the open end of the tube. Some of the
               first cantennas were crafted from Pringles cans. Panel antennas are
               flat devices that focus from only one side of the panel. Parabolic

               antennas are used to focus signals from very long distances or weak
               sources.


               Adjusting Power Level Controls

               Some wireless access points provide a physical or logical adjustment of
               the antenna power levels. Power level controls are typically set by the

               manufacturer to a setting that is suitable for most situations. However,
               if after performing site surveys and adjusting antenna placement,
               wireless signals are still not satisfactory, power level adjustment might
               be necessary. However, keep in mind that changing channels, avoiding
               reflective and signal-scattering surfaces, and reducing interference can

               often be more significant in terms of improving connectivity reliability.
               When adjusting power levels, make minor adjustments instead of

               attempting to maximize or minimize the setting. Also, take note of the
               initial/default setting so you can return to that setting if desired. After
               each power level adjustment, reset/reboot the wireless access point
               before re-performing site survey and quality tests. Sometimes
               lowering the power level can improve performance. It is important to

               keep in mind that some wireless access points are capable of providing
               higher power levels than are allowed by regulations in countries where
