KITCHEN AND BATH WATER SOLUTION

Protect your water consuming appliances

Prefliter

IF award is regarded as one of the most important design competitions worldwide
and are recognized as a symbol of design excellence around the world. Which is
judged by renowned experts, with the best of them receiving an iF seal of outstanding
design quality. The best of the best are awarded with an iF gold award, known as the
"Design Oscar".
Kohler Toobi prefilter has won IF Design Award 2016 for its premium design, concept
of environmental-friendly and excellent performance.

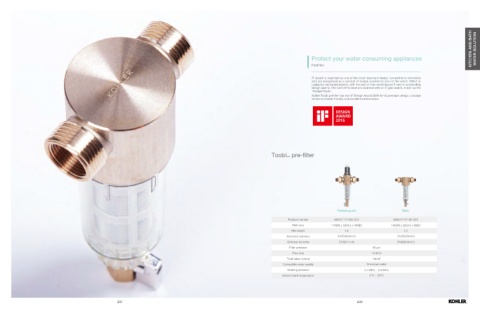

Toobi pre-filter
™

Pressure guard Basic

Product number 96024T-PF200-Q73 96024T-PF100-Q73
Main size 170(W) x 330(H) x 100(D) 160(W) x 235(H) x 60(D)
Net weight 1.6 1.2
Standard diameter DN25(0.6inch) DN25(0.6inch)
Optional diameter DN32(1inch) DN20(0.4inch)
Filter precision 50 μm
3
Flow rate 1.8 M /h
Total rated volume 100 M 3
Compatible water quality Municipal water
Working pressure 0.1 MPa ~ 0.4 MPa
Environment temperature 5℃ ~ 38℃
