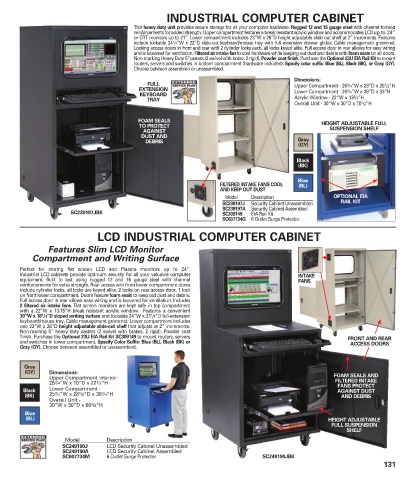

INDUSTRIAL COMPUTER CABINET
This heavy duty unit provides secure storage for all your computer hardware. Rugged 12 and 16 gauge steel with channel formed
reinforcements for added strength. Upper compartment features a break resistant acrylic window and accommodates LCD up to 24”
or CRT monitors up to 21”. Lower compartment includes 23”W x 26”D height adjustable slide out shelf at 2” increments. Features
include lockable 24 1 /4”W x 22”D slide-out keyboard/mouse tray with full extension drawer glides. Cable management grommet.
Locking access doors in front and rear with 2 cylinder locks each, all locks keyed alike. Full access door in rear allows for easy wiring
and is louvered for ventilation. Filtered air intake fan to cool hardware while keeping out dust and debris with foam seals on all doors.
Non-marking Heavy Duty 5”casters (2 swivel with brake, 2 rigid). Powder coat finish. Purchase the Optional 23U EIA Rail Kit to mount
routers, servers and switches in bottom compartment (hardware included). Specify color suffix: Blue (BL), Black (BK), or Gray (GY).
Choose between assembled or unassembled.
Dimensions:
FULL Upper Compartment - 25 3 /4”W x 28”D x 20 1 /2”H
EXTENSION Lower Compartment - 25 3 /4”W x 28”D x 33”H
KEYBOARD
TRAY Acrylic Window - 22”W x 13 3 /4”H
Overall Unit - 30”W x 30”D x 70 1 /2”H
FOAM SEALS
TO PROTECT HEIGHT ADJUSTABLE FULL
AGAINST SUSPENSION SHELF
DUST AND
DEBRIS Gray
(GY)
Black
(BK)

Blue
FILTERED INTAKE FANS COOL (BL)
AND KEEP OUT DUST

Model Description OPTIONAL EIA
SC239197J Security Cabinet Unassembled RAIL KIT
SC239197A Security Cabinet Assembled
SC239197JBK SC309149 EIA Rail Kit
SC607734G 6 Outlet Surge Protector
LCD INDUSTRIAL COMPUTER CABINET
Features Slim LCD Monitor
Compartment and Writing Surface
Perfect for storing flat screen LCD and Plasma monitors up to 24”.
Industrial LCD cabinets provide optimum security for all your valuable computer INTAKE
equipment. Built to last using rugged 12 and 16 gauge steel with channel FANS
reinforcements for extra strength. Rear access and front lower compartment doors
include cylinder locks, all locks are keyed alike, 2 locks on rear access door, 1 lock
on front lower compartment. Doors feature foam seals to keep out dust and debris.
Full access door in rear allows easy wiring and is louvered for ventilation. Includes
2 filtered air intake fans. Flat screen monitors are kept safe in top compartment
with a 22”W x 13.75”H break resistant acrylic window. Features a convenient
30”W x 18 1 /4”D sloped writing surface and lockable 24”W x 21 1 /4”D full-extension
keyboard/mouse tray. Cable management grommet. Lower compartment includes
one 23”W x 26”D height adjustable slide-out shelf that adjusts at 2” increments.
Non-marring 5” heavy duty casters (2 swivel with brakes, 2 rigid). Powder coat
finish. Purchase the Optional 23U EIA Rail Kit SC309149 to mount routers, servers FRONT AND REAR
and switches in lower compartment. Specify Color Suffix: Blue (BL), Black (BK) or ACCESS DOORS
Gray (GY). Choose between assembled or unassembled.
Gray
(GY) Dimensions:
Upper Compartment Interior- FOAM SEALS AND
25 3 /4”W x 10”D x 22 1 /2”H FILTERED INTAKE
FANS PROTECT
Black Lower Compartment - AGAINST DUST
(BK) 25 3 /4”W x 28 1 /8”D x 30 3 /4”H AND DEBRIS
Overall Unit -
30”W x 30”D x 66 3 /8”H
Blue
(BL) HEIGHT ADJUSTABLE
FULL SUSPENSION
SHELF

Model Description
SC249190J LCD Security Cabinet Unassembled
SC249190A LCD Security Cabinet Assembled
SC607734M 6 Outlet Surge Protector SC249190JBK
