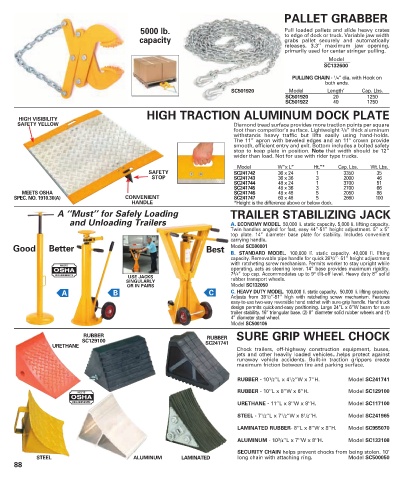

PALLET GRABBER
5000 lb. P o l l l u a d e d p a s t e l l a n d i l s d e h e a v e t a r c y s
capacity to edge of dock or truck. Variable jaw width
grabs pallet securely and automatically
releases. 3.3’’ maximum jaw opening,
primarily used for center stringer pulling.
Model
SC132600
PULLING CHAIN - 1 /4’’ dia. with Hook on
both ends.
SC501920 Model Length’ Cap. Lbs.
SC501920 20 1250
SC501922 40 1250
HIGH TRACTION ALUMINUM DOCK PLATE
HIGH VISIBILITY
SAFETY YELLOW Diamond tread surface provides more traction points per square
foot than competitor’s surface. Lightweight 3 /8” thick aluminum
withstands heavy traffic but lifts easily using hand-holds.
The 11” apron with beveled edges and an 11° crown provide
smooth, efficient entry and exit. Bottom includes a bolted safety
stop to keep plate in position. Note that width should be 12”
wider than load. Not for use with rider type trucks.
Model W”x L” Ht.”* Cap. Lbs. Wt. Lbs.
SAFETY SC241742 36 x 24 1 3350 35
STOP SC241743 36 x 36 3 2000 46
SC241744 48 x 24 1 3700 51
SC241745 48 x 36 3 2700 66
MEETS OSHA SC241746 48 x 48 5 2050 86
SPEC. NO. 1910.30(A) CONVENIENT SC241747 60 x 48 5 2660 100
HANDLE *Height is the difference above or below dock.
A ‘‘Must’’ for Safely Loading TRAILER STABILIZING JACK
and Unloading Trailers A. ECONOMY MODEL. 50,000 li. static capacity. 5,000 li. lifting capacity.
Twin handles angled for fast, easy 44”-51” height adjustment. 5” x 5”
top plate. 14” diameter base plate for stability. Includes convenient
carrying handle.
Good Better Best Model SC500001
B. STANDARD MODEL. 100,000 li. static capacity. 40,000 li. lifting
capacity. Removable pipe handle for quick 39 1 /2’’- 51’’ height adjustment
with ratcheting screw mechanism. Permits worker to stay upright while
MEETS
operating, acts as steering lever. 14” base provides maximum rigidity.
7 /4” top cap. Accommodates up to 9° tilt-off level. Heavy duty 8” solid
3
REQUIREMENTS USE JACKS
SINGULARLY rubber transport wheels.
OR IN PAIRS Model SC132050
A B C C. HEAVY DUTY MODEL. 100,000 li. static capacity, 50,000 li. lifting capacity.
Adjusts from 39 1 /2’’-51’’ high with ratcheting screw mechanism. Features
easy-to-use two-way reversible hand ratchet with sure-grip handle. Hand truck
design permits quick-and-easy positioning. Large 24”L x 6”W beam for sure
trailer stability. 16” triangular base. (2) 8” diameter solid rubber wheels and (1)
4” diameter steel wheel.
Model SC500106
RUBBER RUBBER SURE GRIP WHEEL CHOCK
SC129100 SC241741
URETHANE
Chock trailers, off-highway construction equipment, buses,
jets and other heavily loaded vehicles...helps protect against
runaway vehicle accidents. Built-in traction grippers create
maximum friction between tire and parking surface.
RUBBER - 10 1 /2’’L x 4 1 /2’’W x 7’’H. Model SC241741
RUBBER - 10’’L x 8’’W x 6’’H. Model SC129100
MEETS
URETHANE - 11’’L x 8’’W x 8’’H. Model SC117100
REQUIREMENTS

STEEL - 7 1 /2’’L x 7 1 /2’’W x 8 1 /2’’H. Model SC241965
LAMINATED RUBBER- 8’’L x 8’’W x 8’’H. Model SC955070
3
ALUMINUM - 10 /4’’L x 7’’W x 8’’H. Model SC133108
SECURITY CHAIN e p l p s e r v e c t n h o c k r f s o m b n i e e l o t s g 1 . n ’ 0

h

STEEL ALUMINUM LAMINATED long chain with attaching ring. Model SC500050
