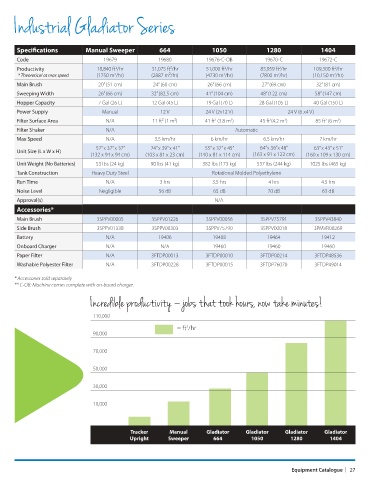

Industrial Gladiator Series

Specifications Manual Sweeper 664 1050 1280 1404
Code 19679 19680 19676-C-OB 19670-C 19672-C
2
2
2
2
Productivity 18,840 ft /hr 31,075 ft²/hr 51,000 ft /hr 83,959 ft /hr 109,300 ft /hr
2
* Theoretical at max speed (1750 m /hr) (2887 m²/hr) (4730 m /hr) (7800 m /hr) (10,150 m /hr)
2
2
2
Main Brush 20” (51 cm) 24” (60 cm) 26” (66 cm) 27” (69 cm) 32” (81 cm)
Sweeping Width 26” (66 cm) 32” (82.5 cm) 41” (104 cm) 48” (122 cm) 58” (147 cm)
Hopper Capacity 7 Gal (26 L) 12 Gal (45 L) 19 Gal (70 L) 28 Gal (105 L) 40 Gal (150 L)
Power Supply Manual 12 V 24 V (2x12 V) 24 V (6 x4 V)
2
2
2
Filter Surface Area N/A 11 ft² (1 m²) 41 ft (3.8 m ) 45 ft (4.2 m ) 65 ft (6 m )
2
2
2
Filter Shaker N/A Automatic
Max Speed N/A 3.5 km/hr 6 km/hr 6.5 km/hr 7 km/hr
52” x 37” x 37” 24” x 39” x 41” 55” x 32” x 45” 64”x 36”x 48” 63” x 43” x 51”
Unit Size (L x W x H)
(132 x 94 x 94 cm) (103 x 81 x 23 cm) (140 x 81 x 114 cm) (163 x 91 x 122 cm) (160 x 109 x 130 cm)
Unit Weight (No Batteries) 53 lbs (24 kg) 90 lbs (41 kg) 382 lbs (173 kg) 537 lbs (244 kg) 1025 lbs (465 kg)
Tank Construction Heavy Duty Steel Rotational Molded Polyethylene
Run Time N/A 3 hrs 3.5 hrs 4 hrs 4.5 hrs
Noise Level Negligible 56 dB 65 dB 70 dB 63 dB
Approval(s) N/A
Accessories*
Main Brush 3SPPV00005 3SPPV01226 3SPPV00056 3SPPV75791 3SPPV43840
Side Brush 3SPPV01338 3SPPV00303 3SPPV75790 3SPPV00018 3PMVR00269
Battery N/A 19406 19408 19464 19412
Onboard Charger N/A N/A 19460 19460 19460
Paper Filter N/A 3FTDP00013 3FTDP00010 3FTDP00214 3FTDP48536
Washable Polyester Filter N/A 3FTDP00228 3FTDP00015 3FTDP76070 3FTDP49014

* Accessories sold separately
** C-OB: Machine comes complete with on-board charger.
Incredible productivity – jobs that took hours, now take minutes! Incredible productivity – jobs that took hours, now take minutes!

40,000 110,000

= ft /hr
2
30,000 90,000

20,000 70,000

15,000 50,000

10,000 30,000

5,000 10,000

Tracker Fast Track Gladiator Gladiator Gladiator Tracker Manual Gladiator Gladiator Gladiator Gladiator
Upright Back Vac 464 512 512 Ride-On Upright Sweeper 664 1050 1280 1404
