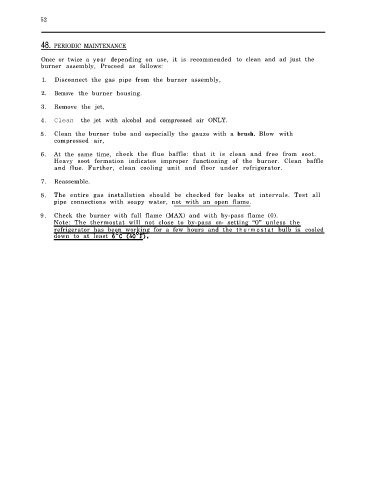

Page 52 - Dometic RM Series Refrigerators Service Manual

52

48. PERIODIC MAINTENANCE

Once or twice a year depending on use, it is recommended to clean and ad just the
burner assembly, Proceed as follows:

1. Disconnect the gas pipe from the burner assembly,
2. Bemove the burner housing.

3. Remove the jet,

4. Clean the jet with alcohol and compressed air ONLY.

5. Clean the burner tube and especially the gauze with a brush. Blow with
compressed air,

6. At the same time, check the flue baffle: that it is clean and free from soot.
Heavy soot formation indicates improper functioning of the burner. Clean baffle
and flue. Further, clean cooling unit and floor under refrigerator.

7. Reassemble.

8. The entire gas installation should be checked for leaks at intervals. Test all
pipe connections with soapy water, not with an open flame.

9. Check the burner with full flame (MAX) and with by-pass flame (0).
Note: The thermostat will not close to by-pass on- setting “0” unless the
refrigerator has been working for a few hours and the thermostat bulb is cooled
down to at least
