8

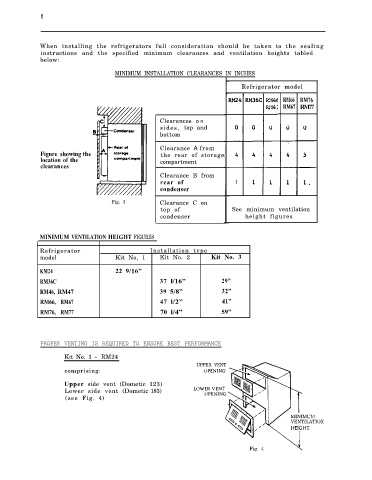

When installing the refrigerators full consideration should be taken to the sealing
instructions and the specified minimum clearances and ventilation heights tabled
below:
MINIMUM INSTALLATION CLEARANCES IN INCHES

Refrigerator model

RM66 RM76
RM67 RM77

Clearances o n
sides, top and
bottom

Clearance A from
Figure showing the the rear of storage
location of the compartment
clearances
Clearance B from
rear of 1
condenser

Fig. 3 Clearance C on
top of See minimum ventilation
condenser height figures

MINIMUM VENTILATION HEIGHT FIGURES

Refrigerator Installation type
model Kit No, 1 Kit No. 2 Kit No. 3
KM24 22 9/16”

RM36C 37 l/16” 29”
RM46, RM47 39 5/8” 32”
RM66, RM67 47 l/2” 41”
RM76, RM77 70 l/4” 59”

PROPER VENTING IS REQUIRED TO ENSURE BEST PERFORMANCE
Kit No. 1 - RM24
UPPER VENT
comprising:

Upper side vent (Dometic 123)
Lower side vent (Dometic 183)
(see Fig. 4)

VENTILATIOX

Fig. 4
