P. 79

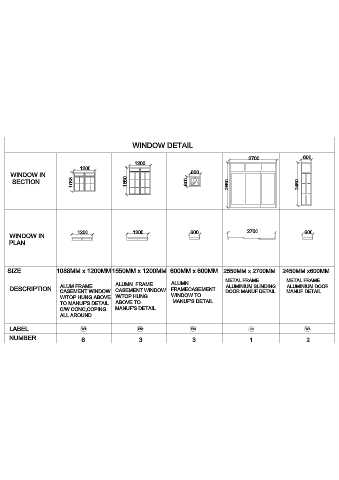

WINDOW DETAIL
2700 600
1200
1200
600
WINDOW IN
SECTION 1088 1550 600 2550 2450
1200 1200 600 2700 600
WINDOW IN
PLAN
SIZE 1088MM x 1200MM1550MM x 1200MM 600MM x 600MM 2550MM x 2700MM 2450MM x600MM
METAL FRAME METAL FRAME
ALUMN.
ALUM.FRAME ALUMN. FRAME ALUMINIUM SLINDING ALUMINIUM DOOR
DESCRIPTION CASEMENT WINDOW FRAMECASEMENT
CASEMENT WINDOW DOOR MANUF DETAIL MANUF DETAIL
W/TOP HUNG ABOVE W/TOP HUNG WINDOW TO
TO MANUF'S DETAIL ABOVE TO MANUF'S DETAIL
C/W CONC,COPING MANUF'S DETAIL
ALL AROUND
LABEL W1 W2 W4 S1 W1
NUMBER 6 3 3 1 2
