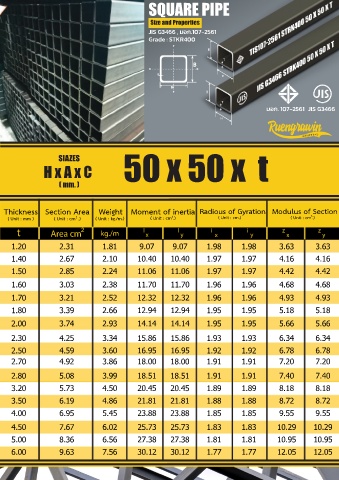

SQUARE PIPE
Size and Properties
JIS G3466 , มอก.107-2561
Grade : STKR400
B
T
H
B
T
มอก. 107-2561 JIS G3466
H

SIAZES 50 x 50 x t
H x A x C
( mm. )

Modulus of Section Thickness Section Area Weight Moment of inertia Radious of Gyration Modulus of Section
( Unit : mm ) ( Unit : cm .) 2 ( Unit : kg./m.) ( Unit : cm .) 4 ( Unit : cm.) ( Unit : cm .) 3
t Area cm 2 kg./m l x l y i x i y z x z y

1.20 2.31 1.81 9.07 9.07 1.98 1.98 3.63 3.63
1.40 2.67 2.10 10.40 10.40 1.97 1.97 4.16 4.16
1.50 2.85 2.24 11.06 11.06 1.97 1.97 4.42 4.42
1.60 3.03 2.38 11.70 11.70 1.96 1.96 4.68 4.68
1.70 3.21 2.52 12.32 12.32 1.96 1.96 4.93 4.93
1.80 3.39 2.66 12.94 12.94 1.95 1.95 5.18 5.18
2.00 3.74 2.93 14.14 14.14 1.95 1.95 5.66 5.66
2.30 4.25 3.34 15.86 15.86 1.93 1.93 6.34 6.34
2.50 4.59 3.60 16.95 16.95 1.92 1.92 6.78 6.78
2.70 4.92 3.86 18.00 18.00 1.91 1.91 7.20 7.20
2.80 5.08 3.99 18.51 18.51 1.91 1.91 7.40 7.40
3.20 5.73 4.50 20.45 20.45 1.89 1.89 8.18 8.18
3.50 6.19 4.86 21.81 21.81 1.88 1.88 8.72 8.72
4.00 6.95 5.45 23.88 23.88 1.85 1.85 9.55 9.55
4.50 7.67 6.02 25.73 25.73 1.83 1.83 10.29 10.29
5.00 8.36 6.56 27.38 27.38 1.81 1.81 10.95 10.95
6.00 9.63 7.56 30.12 30.12 1.77 1.77 12.05 12.05
