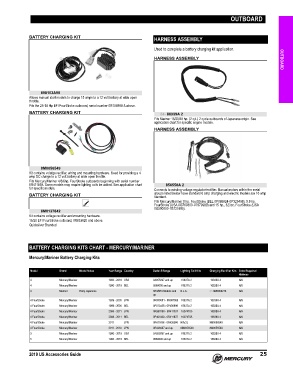

Page 38 - US ACCESSORIES GUIDE (2019)

OUTBOARD

BATTERY CHARGING KIT
HARNESS ASSEMBLY
Used to complete a battery charging kit application.

HARNESS ASSEMBLY OUTBOARD

898103A90
Allows manual start models to charge 15 amps to a 12 volt battery at wide open
throttle.
Fits the 25‑30 Hp EFI FourStroke outboard, serial number 0R106999 & above.
BATTERY CHARGING KIT 84- 86939A 2
Fits Mariner 15/30/40 hp. (2 cyl.) 2 cycle outboards of Japanese origin. See
application chart for specific engine models.
HARNESS ASSEMBLY

8M0056549
Kit contains volatge rectifier, wiring and mounting hardware. Used for providing a 4
amp DC charge to a 12 volt battery at wide open throttle.
Fits Mercury/Mariner 4/5/6hp. FourStroke outboards beginning with serial number
0R411838. Some models may require lighting coils be added. See application chart 856558A 2
for specific models. Connects to existing voltage regulator/rectifier. Manual motors within the serial
BATTERY CHARGING KIT groups listed below have standard 6 amp charging and electric models are 10 amp
standard.
Fits Mercury/Mariner 8 hp. FourStroke (BEL 0P086824‑0P325499), 9.9 hp.
FourStroke (USA 0G760300‑0T979999) and 15 hp., 323cc. FourStroke (USA
0G590000‑1B727495).
8M0137842
Kit contains voltage rectifier and mounting hardware.
15/20 EFI FourStroke outboard, 0R833820 and above.
Quicksilver Branded

BATTERY CHARGING KITS CHART - MERCURY/MARINER
Mercury/Mariner Battery Charging Kits

Model Brand Model Notes Year Range Country Serial # Range Lighting Coil Kits Charging Rectifier Kits Extra Required
Harness
4 Mercury/Mariner 1990 - 2019 USA 0A855097 and up 16837A 2 16838A 4 N/A
4 Mercury/Mariner 1990 - 2019 BEL 9586000 and up 16837A 2 16838A 4 N/A
4 Mariner Early Japanese 6E0/6E3 Models and N.L.A. 83-8M0060278 N/A
up
4 FourStroke Mercury/Mariner 1999 - 2005 JPN 0R000001 - 0R067089 16837A 2 16838A 4 N/A
4 FourStroke Mercury/Mariner 1999 - 2005 BEL 0P073456 - 0P400999 16837A 2 16838A 4 N/A
4 FourStroke Mercury/Mariner 2006 - 2011 JPN 0R067090 - 0R411837 16074T05 16838A 4 N/A
4 FourStroke Mercury/Mariner 2006 - 2011 BEL 0P401000 - 0R411837 16074T05 16838A 4 N/A
4 FourStroke Mercury/Mariner 2011 JPN 0R411838 - 0R426996 N/A(1) 8M0056549 N/A
4 FourStroke Mercury/Mariner 2011 - 2019 JPN 0R426997 and up 8M0056548 8M0056549 N/A
5 Mercury/Mariner 1990 - 2019 USA 0A855097 and up 16837A 2 16838A 4 N/A
5 Mercury/Mariner 1990 - 2019 BEL 9586000 and up 16837A 2 16838A 4 N/A

2019 US Accessories Guide 25
