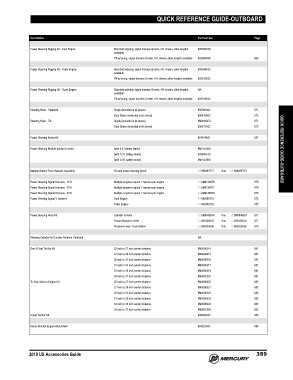

Page 402 - US ACCESSORIES GUIDE (2019)

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Power Steering Rigging Kit - Dual Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892380K36
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892560K56 669

Power Steering Rigging Kit - Triple Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892558K33
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892516K53

Power Steering Rigging Kit - Quad Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths NA
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892516K63

Steering Helm - Standard Single (included in kit above) 892380A02 671
Dual Station (included in kit above) 895816A02 672
Steering Helm - Tilt Single (included in kit above) 8M0030272 671
Dual Station (included in kit above) 895817A02 672

Power Steering Kicker Kit 897478K01 657

Power Steering Module (pump & motor) (with 4 ft. battery leads) 8M0122660 QUICK REFERENCE GUIDE-OUTBOARD
(with 12 ft. battery leads) 892440A18
(with 24 ft. battery leads) 8M0122663

Multiple Battery Fuse Harness Assembly 50 amp power steering circuit 84-898289T77 thru 84-898289T79

Power Steering Signal Harness - 10 ft. Multiple engines require 1 harness per engine 84-8M0138676 676
Power Steering Signal Harness - 20 ft. Multiple engines require 1 harness per engine 84-8M0138677 676
Power Steering Signal Harness - 30 ft. Multiple engines require 1 harness per engine 84-8M0138678 676
Power Steering Signal Y Harness Dual Engine 84-892868T01 675
Triple Engine 84-892868T02 675

Power Steering Hose Kit Cylinder to Helm 32-8M0046914 thru 32-8M0046931 677
Power Module to Helm 32-892438K02 thru 32-892438K24 677
Pressure Hose - Dual Station 32-892825008 thru 32-892825026 678

Steering Cylinder for Counter Rotation Outboard NA

Gen 5 Dual Tie Bar Kit 25 inch to 27 inch center distance 8M0096314 681
27 inch to 29 inch center distance 8M0096315 681
29 inch to 31 inch center distance 8M0096316 681
31 inch to 33 inch center distance 8M0096317 681
33 inch to 35 inch center distance 8M0096319 681
35 inch to 37 inch center distance 8M0097267 681
Tie Bar, Add-an-Engine Kit 25 inch to 27 inch center distance 8M0096320 682
27 inch to 29 inch center distance 8M0096321 682
29 inch to 31 inch center distance 8M0096322 682
31 inch to 33 inch center distance 8M0096323 682
33 inch to 35 inch center distance 8M0096324 682
35 inch to 37 inch center distance 8M0097268 682
Liquid Tie Bar Kit 893396A02 683

Kicker Bracket Engine Attachment 892822A02 684

2019 US Accessories Guide 389
