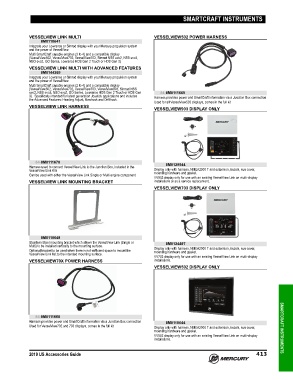

Page 426 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT INSTRUMENTS

VESSELVIEW LINK MULTI VESSELVIEW502 POWER HARNESS
8M0110641
Integrate your Lowrance or Simrad display with your Mercury propulsion system
and the power of VesselView.
Multi SmartCraft capable engines (2 to 4) and a compatible display
(VesselView502, VesselView702, VesselView703, Simrad NSS evo2, NSS evo3,
NSO evo2, GO Series, Lowrance HDS Gen 2 Touch or HDS Gen 3)
VESSELVIEW LINK MULTI WITH ADVANCED FEATURES
8M0144269
Integrate your Lowrance or Simrad display with your Mercury propulsion system
and the power of VesselView.
Multi SmartCraft capable engines (2 to 4) and a compatible display
(VesselView502, VesselView702, VesselView703, VesselView903, Simrad NSS
evo2, NSS evo3, NSO evo2, GO Series, Lowrance HDS Gen 2 Touch or HDS Gen 84-8M0111669
3). Specifically intended for latest generation Joystick applications and includes Harness provides power and SmartCraft information via a Junction Box connection
the Advanced Features: Heading Adjust, Bowhook and Drifthook.
Used for all VesselView502 displays, comes in the full kit
VESSELVIEW LINK HARNESS
VESSELVIEW903 DISPLAY ONLY

84-8M0111670
Harness used to connect VesselView Link to the Junction Box, included in the 8M0129544
VesselView Link Kits Display only with harness, NMEA2000 T and extension, bezels, sun cover,
Can be used with either the VesselView Link Single or Multi engine component mounting hardware and gasket.
VV903 display only for use with an exisitng VesselView Link on multi‑display
VESSELVIEW LINK MOUNTING BRACKET installations or as a service replacement..
VESSELVIEW703 DISPLAY ONLY

8M0110649
Stainless Steel mounting bracket which allows the VesselView Link (Single or 8M0124497
Multi) to be installed vertically to the mounting surface. Display only with harness, NMEA2000 T and extension, bezels, sun cover,
Optional bracket to be used when there is not sufficient space to mount the mounting hardware and gasket.
VesselView Link flat to the intended mounting surface.
VV703 display only for use with an exisitng VesselView Link on multi‑display
VESSELVIEW70X POWER HARNESS installations.
VESSELVIEW502 DISPLAY ONLY

84-8M0111668
Harness provides power and SmartCraft information via a Junction Box connection 8M0110644
Used for VesselView702 and 703 displays, comes in the full kit Display only with harness, NMEA2000 T and extension, bezels, sun cover, SMARTCRAFT INSTRUMENTS
mounting hardware and gasket.
VV502 display only for use with an exisitng VesselView Link on multi‑display
installations.
