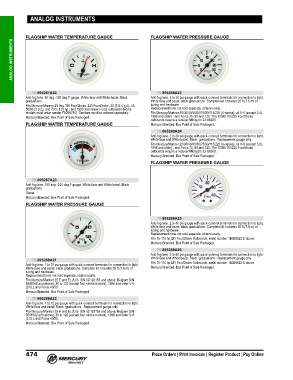

Page 487 - US ACCESSORIES GUIDE (2019)

ANALOG INSTRUMENTS

FLAGSHIP WATER TEMPERATURE GAUGE FLAGSHIP WATER PRESSURE GAUGE
ANALOG INSTRUMENTS

79-895287A22 79-895288A23
Anti‑fog lens. 60 deg.‑200 deg.F gauge. White face and White bezel; Black Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
graduations. White face and bezel; black graduations. Complete kit. Includes 25 ft.(7.6 m) of
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45, tubing and hardware.
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force Replacement hose not sold separate, obtain locally.
models must order sender FA299791) Senders must be ordered seperately Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
Mercury Branded, Box Point of Sale Packaged. 1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
FLAGSHIP WATER TEMPERATURE GAUGE Mercury Branded, Box Point of Sale Packaged.
79-895288A24
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
White face and White bezel; Black graduations. Replacement gauge only
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895287A23
Anti‑fog lens. 100 deg.‑240 deg.F gauge. White face and White bezel; Black
graduations.
Diesel
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895288A25
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
White face and bezel; black graduations. Complete kit. Includes 25 ft.(7.6 m) of
tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Mercury Branded, Box Point of Sale Packaged.
79-895288A26
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
79-895288A21 White face and White bezel; Black graduations. Replacement gauge only
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light. Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
White face and bezel; black graduations. Complete kit. Includes 25 ft.(7.6 m) of Mercury Branded, Box Point of Sale Packaged.
tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Mercury Branded, Box Point of Sale Packaged.
79-895288A22
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
White face and bezel; Black graduations. Replacement gauge only
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Mercury Branded, Box Point of Sale Packaged.

474 Place Orders | Print Invoices | Register Product | Pay Online
