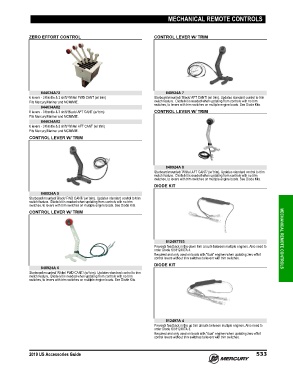

Page 546 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

ZERO EFFORT CONTROL CONTROL LEVER W/ TRIM

844634A72 848924A 7
6 levers ‑ 3 throttle & 3 shift/ White/ FWD CANT (w/ trim) Starboard mounted/ Black/ AFT CANT/ (w/ trim). Updates standard control to trim
Fits Mercury/Mariner and MCM/MIE. switch feature. Diode kit is needed when updating from controls with no trim
switches, to levers with trim switches on multiple engine boats. See Diode Kits.
844634A82
6 levers ‑ 3 throttle & 3 shift/ Black/ AFT CANT (w/ trim) CONTROL LEVER W/ TRIM
Fits Mercury/Mariner and MCM/MIE.
844634A92
6 levers ‑ 3 throttle & 3 shift/ White/ AFT CANT (w/ trim)
Fits Mercury/Mariner and MCM/MIE.
CONTROL LEVER W/ TRIM

848924A 8
Starboard mounted/ White/ AFT CANT/ (w/ trim). Updates standard control to trim
switch feature. Diode kit is needed when updating from controls with no trim
switches, to levers with trim switches on multiple engine boats. See Diode Kits.
DIODE KIT
848924A 5
Starboard mounted/ Black/ FWD CANT/ (w/ trim). Updates standard control to trim
switch feature. Diode kit is needed when updating from controls with no trim
switches, to levers with trim switches on multiple engine boats. See Diode Kits.
CONTROL LEVER W/ TRIM

812497T03 MECHANICAL REMOTE CONTROLS
Prevents feedback in the down trim circuits between multiple engines. Also need to
order Diode Kit 812497A 4.
Required and only used on boats with "dual" engines when updating zero effort
control levers without trim switches to levers with trim switches.
DIODE KIT
848924A 6
Starboard mounted/ White/ FWD CANT/ (w/ trim). Updates standard control to trim
switch feature. Diode kit is needed when updating from controls with no trim
switches, to levers with trim switches on multiple engine boats. See Diode Kits.

812497A 4
Prevents feedback in the up trim circuits between multiple engines. Also need to
order Diode Kit 812497A 3.
Required and only used on boats with "dual" engines when updating zero effort
control levers without trim switches to levers with trim switches.

2019 US Accessories Guide 533
