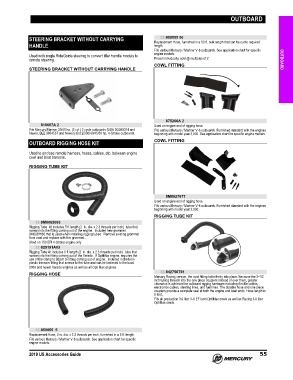

Page 68 - US ACCESSORIES GUIDE (2019)

OUTBOARD

32-859055 50
STEERING BRACKET WITHOUT CARRYING Replacement Hose, furnished in a 50 ft. bulk length that can be cut to required
HANDLE length.
Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
Used with single RideGuide steering to convert tiller handle models to engine models.
remote steering. Priced individually, sold @ multiples of 2 OUTBOARD
COWL FITTING
STEERING BRACKET WITHOUT CARRYING HANDLE

875266A 2
816667A 2 Used on engine end of rigging hose.
Fits Mercury/Mariner 30/40 hp. (2 cyl.) 2 cycle outboards (USA 0G055314 and Fits various Mercury / Mariner V‑6 outboards. Furnished standard with the engines
Newer, BEL 9854537 and Newer) and 25/30/40/45/50 hp. 4‑Stroke outboards. beginning with model year 2,000. See application chart for specific engine models.
OUTBOARD RIGGING HOSE KIT COWL FITTING

Used to enclose remote harness, hoses, cables, etc. between engine
cowl and boat transom.

RIGGING TUBE KIT

8M8027677
Used on engine end of rigging hose.
Fits various Mercury / Mariner V‑6 outboards. Furnished standard with the engines
beginning with model year 2,000.
RIGGING TUBE KIT
32-8M0062693
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube that
screws into the fitting coming out of the engine. Includes new grommet
8M0061160 that is used when installing rigging tubes. Remove existing grommet
from cowl and replace with this grommet..
Used on 150 EFI 4‑Stroke engine only
32-825191A03
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube that
screws into the fitting coming out of the Verado. If OptiMax engine, requires the
use of the clamp to attach to fitting coming out of engine. Included in the kit is
plastic transom fitting that screws to the tube and can be fastened to the boat.
2005 and newer Verado engines as well as all Opti Max engines
32-842756T01
RIGGING HOSE
Mercury Racing version, the cowl fitting bolts firmly into place. Because the 2‑1/2
inch tubing threads into the one piece couplers instead of over them, greater
clearance is achieved for outboard rigging hardware including throttle cables,
electronics cables, steering lines, and fuel lines. The durable hose and one piece
couplers provide a complete seal at both the engine and boat ends. Hose length is
5 feet.
Fits all production 3.0 liter V‑6 EFI and OptiMax cowls as well as Racing 3.0 liter
OptiMax cowls.

32-859055 5
Replacement Hose, 2 in. dia. x 2.3 threads per inch, furnished in a 5 ft. length.
Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
engine models.

2019 US Accessories Guide 55
