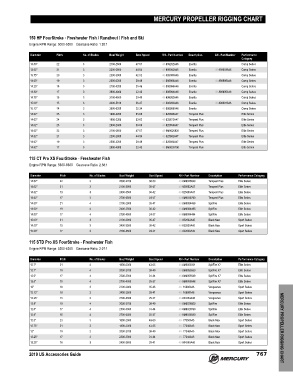

MERCURY PROPELLER RIGGING CHART

150 HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.50” 22 3 2100-2600 47-57 48-899202A46 Enertia Comp Series
13.62” 21 3 2200-2800 44-54 48-899002A46 Enertia 48-899003A46 Comp Series
13.75” 20 3 2300-3000 42-52 48-899000A46 Enertia Comp Series
14.00” 19 3 2500-3200 39-49 48-898998A46 Enertia 48-898999A46 Comp Series
14.25” 18 3 2700-3200 35-46 48-898996A46 Enertia Comp Series
14.50” 17 3 2900-4000 32-43 48-898994A46 Enertia 48-898995A46 Comp Series
14.75” 16 3 3100-4500 29-40 48-898992A46 Enertia Comp Series
15.00” 15 3 3400-5100 26-37 48-898990A46 Enertia 48-898991A46 Comp Series
15.13” 14 3 3800-6200 22-34 48-898988A46 Enertia Comp Series
14.62” 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.62” 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.62” 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series
115 CT Pro XS FourStroke ‑ Freshwater Fish
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 22 3 2000-2700 38-50 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2100-2900 35-47 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2400-3500 30-42 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2700-4500 24-37 48-8M8026790 Tempest Plus Elite Series
14.00” 21 4 2100-2900 35-47 48-8M0084496 SpitFire Elite Series
14.00” 19 4 2400-3500 30-42 48-8M0084495 SpitFire Elite Series
14.00” 17 4 2700-4500 24-37 48-8M0084494 SpitFire Elite Series
15.00” 21 3 2100-2900 35-47 48-832832A45 Black Max Sport Series
14.50” 19 3 2400-3500 30-42 48-832830A45 Black Max Sport Series
15.00” 17 3 2700-4500 24-37 48-832828A45 Black Max Sport Series
115 STD Pro XS FourStroke ‑ Freshwater Fish
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7" 21 4 1800-2300 43-55 48-8M0055551 SpitFire X7 Elite Series
12.7" 19 4 2000-2700 38-49 48-8M0055550 SpitFire X7 Elite Series
13.0" 17 4 2300-3300 31-44 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2700-4300 25-37 48-8M0055548 SpitFire X7 Elite Series
13” 18 3 2100-2900 35-46 48- 16988A46 Vengeance Sport Series
13.13” 16 3 2400-3800 28-41 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2700-4300 25-37 48-854354A46 Vengeance Sport Series
12.8” 19 4 2000-2700 38-49 48-8M8026600 SpitFire Elite Series
12.8” 17 4 2300-3300 31-44 48-8M8026590 SpitFire Elite Series
12.8” 15 4 2700-4300 25-37 48-8M8026580 SpitFire Elite Series
12.5” 23 3 1600-2000 49-60 48- 77350A45 Black Max Sport Series
12.75” 21 3 1800-2300 43-55 48- 77348A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
13” 19 3 2000-2700 38-49 48- 77346A45 Black Max Sport Series
13.25” 17 3 2300-3300 31-44 48- 77344A45 Black Max Sport Series
13.25” 16 3 2400-3800 28-41 48-854360A45 Black Max Sport Series

2019 US Accessories Guide 767
