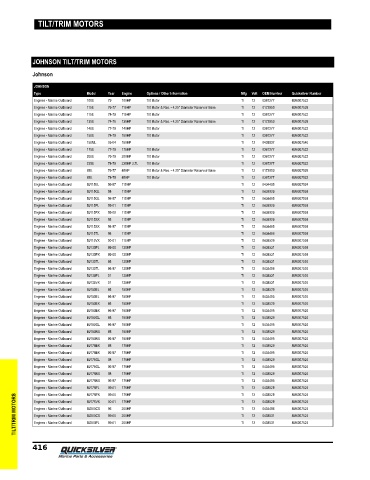

Page 421 - Quicksilver Marine Parts Guide (2020) - 8M0163275

TILT/TRIM MOTORS

JOHNSON TILT/TRIM MOTORS

Johnson
JOHNSON
Type Model Year Engine Options / Other Information Mfg Volt OEM Number Quicksilver Number
Engines - Marine Outboard 100E 79 100HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 115E 76-77 115HP Tilt Motor & Res. - 4.25" Diameter Reservoir Base TI 12 0172850 8M6007528
Engines - Marine Outboard 115E 78-79 115HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 135E 74-75 135HP Tilt Motor & Res. - 4.25" Diameter Reservoir Base TI 12 0172850 8M6007528
Engines - Marine Outboard 140E 77-79 140HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 150E 78-79 150HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 150ML 03-04 150HP TI 12 0439937 8M6007540
Engines - Marine Outboard 175E 77-79 175HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 200E 76-79 200HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 235E 78-79 235HP 2.7L Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard 85E 76-77 85HP Tilt Motor & Res. - 4.25" Diameter Reservoir Base TI 12 0172850 8M6007528
Engines - Marine Outboard 85E 78-79 85HP Tilt Motor TI 12 0387277 8M6007522
Engines - Marine Outboard BJ115EL 96-97 115HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ115GL 98 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ115GL 96-97 115HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ115PL 99-01 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ115PX 99-00 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ115SX 98 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ115SX 96-97 115HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ115TL 96 115HP TI 12 0434496 8M6007524
Engines - Marine Outboard BJ115VX 00-01 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ130PL 99-00 130HP TI 12 0438531 8M6007524
Engines - Marine Outboard BJ130PX 99-00 130HP TI 12 0438531 8M6007524
Engines - Marine Outboard BJ130TL 98 130HP TI 12 0438531 8M6007524
Engines - Marine Outboard BJ130TL 96-97 130HP TI 12 0434496 8M6007524
Engines - Marine Outboard BJ135PL 01 135HP TI 12 0438531 8M6007524
Engines - Marine Outboard BJ135VX 01 135HP TI 12 0438531 8M6007524
Engines - Marine Outboard BJ150EL 98 150HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ150EL 96-97 150HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ150EX 98 150HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ150EX 96-97 150HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ150GL 98 150HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ150GL 96-97 150HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ150NX 98 150HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ150NX 96-97 150HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ175EX 98 175HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ175EX 96-97 175HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ175GL 98 175HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ175GL 96-97 175HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ175NX 98 175HP TI 12 0438529 8M6007524
Engines - Marine Outboard BJ175NX 96-97 175HP TI 12 0434495 8M6007524
Engines - Marine Outboard BJ175PL 99-01 175HP TI TI 12 0438529 8M6007524
175HP
99-00
BJ175PX
8M6007524
0438529
12
Engines - Marine Outboard
TILT/TRIM MOTORS Engines - Marine Outboard BJ175VX 00-01 175HP TI TI TI TI 12 0438529 8M6007524
12
8M6007524
Engines - Marine Outboard
200HP
0434496
96
BJ200CX
12
0438531
99-00
8M6007524
BJ200CX
200HP
Engines - Marine Outboard
0438531
8M6007524
99-01
Engines - Marine Outboard
BJ200PL
12
200HP
416
