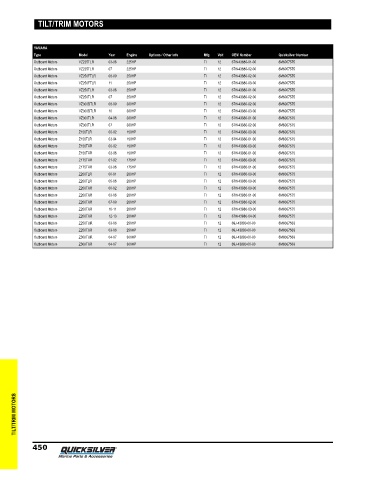

Page 455 - Quicksilver Marine Parts Guide (2020) - 8M0163275

TILT/TRIM MOTORS

YAMAHA
Type Model Year Engine Options / Other Info Mfg Volt OEM Number Quicksilver Number
Outboard Motors VZ225TLR 03-06 225HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors VZ225TLR 07 225HP TI 12 67H-43880-02-00 8M6007575
Outboard Motors VZ250FTLR 08-09 250HP TI 12 67H-43880-02-00 8M6007575
Outboard Motors VZ250FTLR 11 250HP TI 12 67H-43880-03-00 8M6007575
Outboard Motors VZ250TLR 03-06 250HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors VZ250TLR 07 250HP TI 12 67H-43880-02-00 8M6007575
Outboard Motors VZ300BTLR 08-09 300HP TI 12 67H-43880-02-00 8M6007575
Outboard Motors VZ300BTLR 10 300HP TI 12 67H-43880-03-00 8M6007575
Outboard Motors VZ300TLR 04-06 300HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors VZ300TLR 07 300HP TI 12 67H-43880-02-00 8M6007575
Outboard Motors Z150TLR 00-02 150HP TI 12 67H-43880-00-00 8M6007575
Outboard Motors Z150TLR 03-04 150HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors Z150TXR 00-02 150HP TI 12 67H-43880-00-00 8M6007575
Outboard Motors Z150TXR 03-06 150HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors Z175TXR 01-02 175HP TI 12 67H-43880-00-00 8M6007575
Outboard Motors Z175TXR 03-06 175HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors Z200TLR 00-01 200HP TI 12 67H-43880-00-00 8M6007575
Outboard Motors Z200TLR 05-06 200HP TI 12 67H-43880-00-00 8M6007575
Outboard Motors Z200TXR 00-02 200HP TI 12 67H-43880-00-00 8M6007575
Outboard Motors Z200TXR 03-06 200HP TI 12 67H-43880-01-00 8M6007575
Outboard Motors Z200TXR 07-09 200HP TI 12 67H-43880-02-00 8M6007575
Outboard Motors Z200TXR 10-11 200HP TI 12 67H-43880-03-00 8M6007575
Outboard Motors Z200TXR 12-13 200HP TI 12 67H-43880-04-00 8M6007575
Outboard Motors Z250TUR 03-06 250HP TI 12 69J-43880-00-00 8M6007563
Outboard Motors Z250TXR 03-06 250HP TI 12 69J-43880-00-00 8M6007563
Outboard Motors Z300TUR 04-07 300HP TI 12 69J-43880-00-00 8M6007563
Outboard Motors Z300TXR 04-07 300HP TI 12 69J-43880-00-00 8M6007563

TILT/TRIM MOTORS

450
