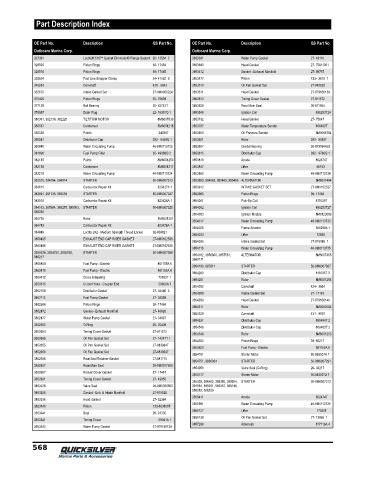

Page 573 - Quicksilver Marine Parts Guide (2020) - 8M0163275

Part Description Index

OE Part No. Description QS Part No. OE Part No. Description QS Part No.
Outboard Marine Corp. Outboard Marine Corp.
327361 Loctite® 518™ Gasket Eliminator® Flange Sealant 92- 12564 2 3853361 Water Pump Gasket 27- 49110
328506 Piston Rings 39- 17464 3853380 Head Gasket 27- 75611001
328516 Piston Rings 39- 17465 3853412 Gasket - Exhaust Manifold 27- 99757
329654 Fuel Line Snapper Clamp 54- 41582 9 3853477 Piston 733- 3818 1
340284 Camshaft 431- 5943 3853510 Oil Pan Gasket Set 27-845628
352670 Intake Gasket Set 27-8M0050224 3853511 Head Gasket 27-879150139
370409 Piston Rings 39- 75609 3853512 Timing Cover Gasket 27-811572
377139 Ball Bearing 30- 63742T 3853528 Rear Main Seal 26-811554
379957 Drain Plug 22- 16951Q 1 3853548 Ignition Coil 898253T24
380361, 382138, 382220 TILT/TRIM MOTOR 8M6007536 3853732 Head Gasket 27- 75647
380537 Condenser 8M6001218 3853787 Water Temperature Sender 806490T
380538 Points 34235T 3853800 Oil Pressure Sender 8M0068784
380541 Distributor Cap 393- 9459Q 1 3853801 Rotor 392- 9089T
380640 Water Circulating Pump 46-8M0113733 3853807 Gimbal Bearing 30-879194A02
381690 Fuel Pump Filter 35- 49088Q 2 3853815 Distributor Cap 392- 9766Q 1
382135 Points 8M6001250 3853818 Anode 802474T
382136 Condenser 8M6001217 3853847 Lifter 56153
382218 Water Circulating Pump 46-8M0113734 3853850 Water Circulating Pump 46-8M0113734
383575, 384194, 384914 STARTER 50-8M6007313 3853853, 984565, 985465, 985466 ALTERNATOR 8M6007494
383615 Carburetor Repair Kit 823427A 1 3853912 INTAKE GASKET SET 27-8M0162527
383691, 391735, 585058 STARTER 50-8M6007327 3853960 Piston Rings 39- 17464
383918 Carburetor Repair Kit 823426A 1 3854001 Pick-Up Coil 811639T
384163, 387684, 389275, 585063, STARTER 50-8M6007325 3854002 Ignition Coil 898253T27
586280
3854003 Ignition Module 8M0123099
384735 Rotor 8M6001251
3854017 Water Circulating Pump 46-8M0113733
384743 Carburetor Repair Kit 823426A 1
3854026 Flame Arrestor 805298A 1
384849 Loctite 242 - Medium Strength Thread Locker 92-809821
3854033 Lifter 72638
3850495 EXHAUST END CAP RISER GASKET 27-8M0162536
3854095 Intake Gasket Set 27-818188 1
3850496 EXHAUST END CAP RISER GASKET 27-8M0162530
3854116 Water Circulating Pump 46-8M0113735
3850526, 3854750, 3855882, STARTER 50-8M6007366
988217 3854182, 3856600, 3857561, ALTERNATOR 8M6007465
3860171
3850809 Fuel Pump - Electric 861155A 6
3854190, 987811 STARTER 50-8M6007367
3850810 Fuel Pump - Electric 861155A 6
3854260 Distributor Cap 811635T 3
3850812 Cross & Bearing 75832T 1
3854261 Rotor 8M6001254
3850815 U-Joint Yoke - Coupler End 59830A 7
3854262 Camshaft 424- 3864
3852109 Distributor Gasket 27- 34486 3
3854269 Intake Gasket Set 27- 17145
3852113 Fuel Pump Gasket 27- 34898
3854299 Head Gasket 27-879150140
3852368 Piston Rings 39- 17464
3854311 Rotor 8M0062084
3852472 Gasket - Exhaust Manifold 27- 46820
3854328 Camshaft 431- 9691
3852477 Water Pump Gasket 27- 34897
3854331 Distributor Cap 850484T 2
3852565 O-Ring 25- 25439
3854548 Distributor Cap 808483T 3
3852654 Timing Cover Gasket 27-811572
3854549 Rotor 8M6001253
3852655 Oil Pan Gasket Set 27- 14247T 1
3854552 Piston Rings 39- 66217
3852655 Oil Pan Gasket Set 27-883964T
3854620 Fuel Pump - Electric 861155A 6
3852656 Oil Pan Gasket Set 27-883964T
3854751 Starter Motor 50-863007A 1
3852656 Rear Seal Retainer Gasket 27-881715
3854751, 3856004 STARTER 50-8M6007291
3852657 Rear Main Seal 26-8M0077606
3854956 Valve Seal (O-Ring) 26- 34217
3852687 Rocker Cover Gasket 27- 17467
3855177 Starter Motor 50-863007A 1
3852691 Timing Cover Gasket 27- 49953
385529, 386465, 389380, 389954, STARTER 50-8M6007312
3853226 Valve Seal 26-8M0050563 391554, 585051, 585057, 585196,
586282, 586283
3853256 Gasket - Exh. & Intake Manifold 27-815528
3855411 Anode 802474T
3853336 Head Gasket 27- 52364
3855991 Water Circulating Pump 46-8M0113735
3853340 Piston 733-803850T
3856127 Lifter 17340T
3853341 Seal 26- 97335
3856138 Oil Pan Gasket Set 27- 13865 1
3853341 Timing Cover 59341A 1
3857298 Alternator 817119A 4
3853342 Water Pump Gasket 27-879150138
568
