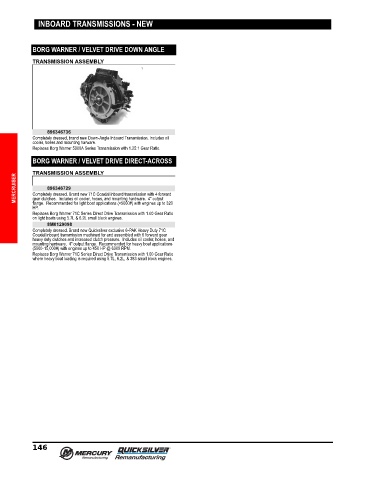

Page 163 - Repower Reference Guide (2020) 8M0149179

INBOARD TRANSMISSIONS - NEW

BORG WARNER / VELVET DRIVE DOWN ANGLE

TRANSMISSION ASSEMBLY

896346736
Completely dressed, brand new Down‑Angle Inboard Transmission. Includes oil
cooler, hoses and mounting harware.
Replaces Borg Warner 5000A Series Transmission with 1.25:1 Gear Ratio.
BORG WARNER / VELVET DRIVE DIRECT-ACROSS

TRANSMISSION ASSEMBLY
MERCRUISER Completely dressed. Brand new 71C Coaxial inboard transmission with 4 forward
896346729
gear clutches. Includes oil cooler, hoses, and mounting hardware. 4" output
flange. Recommended for light boat applications (<5000#) with engines up to 320
HP.
Replaces Borg Warner 71C Series Direct Drive Transmission with 1.00 Gear Ratio
on light boats using 5.7L & 6.2L small block engines.
8M0129098
Completely dressed. Brand new Quicksilver exclusive 6‑PAK Heavy Duty 71C
Coaxial inboard transmission machined for and assembled with 6 forward gear
heavy duty clutches and increased clutch pressure. Includes oil cooler, hoses, and
mounting hardware. 4" output flange. Recommended for heavy boat applications
(5000‑15,000#) with engines up to 450 HP @ 6000 RPM.
Replaces Borg Warner 71C Series Direct Drive Transmission with 1.00 Gear Ratio
where heavy boat loading is required using 5.7L, 6.2L, & 383 small block engines.

146
