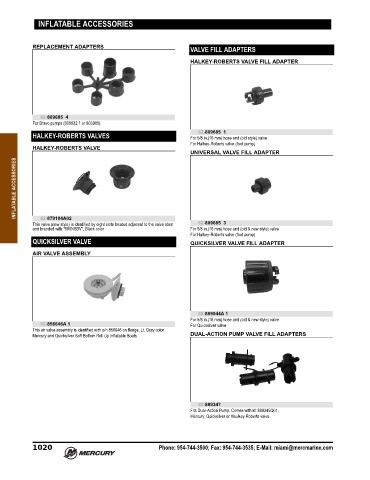

Page 1029 - Latin America Accessories Guide (2020) - 8M0163252

INFLATABLE ACCESSORIES

REPLACEMENT ADAPTERS
VALVE FILL ADAPTERS
HALKEY-ROBERTS VALVE FILL ADAPTER

62-809685 4
For Bravo pumps (809632 1 or 803905)
62-809685 1
HALKEY-ROBERTS VALVES For 5/8 in.(16 mm) hose and (old style) valve
For Halkey‑Roberts valve (foot pump)
HALKEY-ROBERTS VALVE
UNIVERSAL VALVE FILL ADAPTER
INFLATABLE ACCESSORIES

62-879184A02
This valve (new style) is identified by eight slots located adjacent to the valve stem 62-809685 3
and branded with "690NSBV", Black color For 5/8 in.(16 mm) hose and (old & new style) valve
For Halkey‑Roberts valve (foot pump)
QUICKSILVER VALVE QUICKSILVER VALVE FILL ADAPTER

AIR VALVE ASSEMBLY

62-859044A 1
For 5/8 in.(16 mm) hose and (old & new style) valve
62-856646A 1 For Quicksilver valve
This air valve assembly is identified with p/n 856646 on flange, Lt. Gray color
Mercury and Quicksilver Soft Bottom Roll Up Inflatable Boats DUAL-ACTION PUMP VALVE FILL ADAPTERS

62-889347
Fits Dual‑Action Pump. Comes with kit 889345Q01.
Mercury, Quicksilver or Haulkey Roberts valve

1020 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
